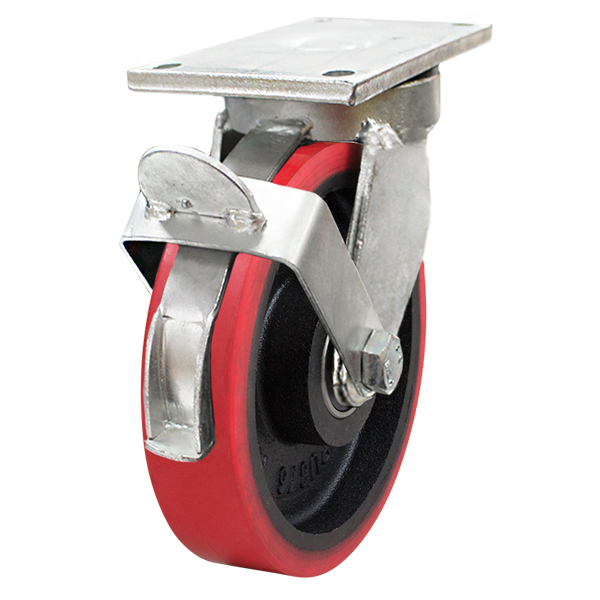

250mm Poly Ci Wheel 1000Kg Capacity Castor (S1019B)

The S1019B by Richmond Rolling Solutions is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is one of our 1000 series range and can safely take loads up to 1000kg. The S1019B uses ball bearings for wheel rotation. The swivel frame allows full swivel rotation to enable steering. The outside diameter of the polyurethane tyred cast iron wheel is 250mm, the wheel width is 50mm and you can order separately (Part Number: PU1056). To order this castor without a brake, search for S1019.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	S1019B
Wheel Diameter (mm)	250
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1056
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	300
Swivel Radius (mm)	180
Maximum Load Capacity (kg)	1000
Towable	Yes
