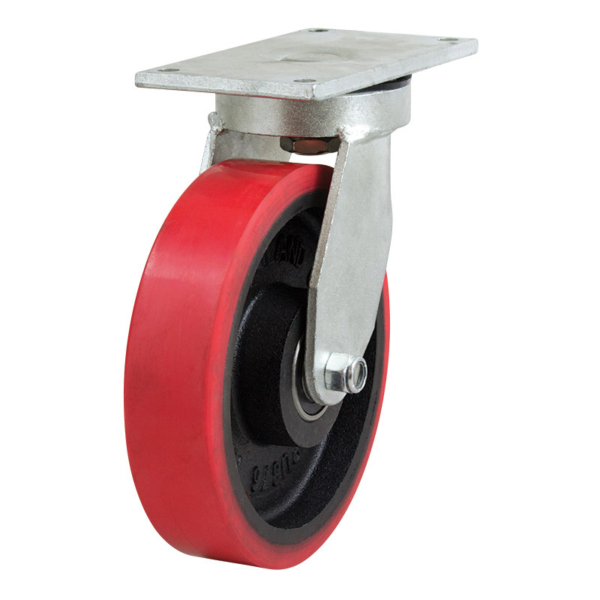

250mm Poly Ci Wheel 1000Kg Capacity Castor (S1019)

The S1019 manufactured by Richmond Rolling Solutions is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is part of our 1000 series range and has a maximum capacity of 1000kg. The S1019 uses ball bearings for wheel rotation. The swivel frame of this castor allows the castor to swivel 360°. The overall polyurethane tyred cast iron wheel diameter is 250mm, the wheel width is 50mm and you can order separately (Part Number: PU1056). For the same castor with a brake, see

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	S1019
Wheel Diameter (mm)	250
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1056
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	300
Swivel Radius (mm)	180
Maximum Load Capacity (kg)	1000
Towable	Yes
