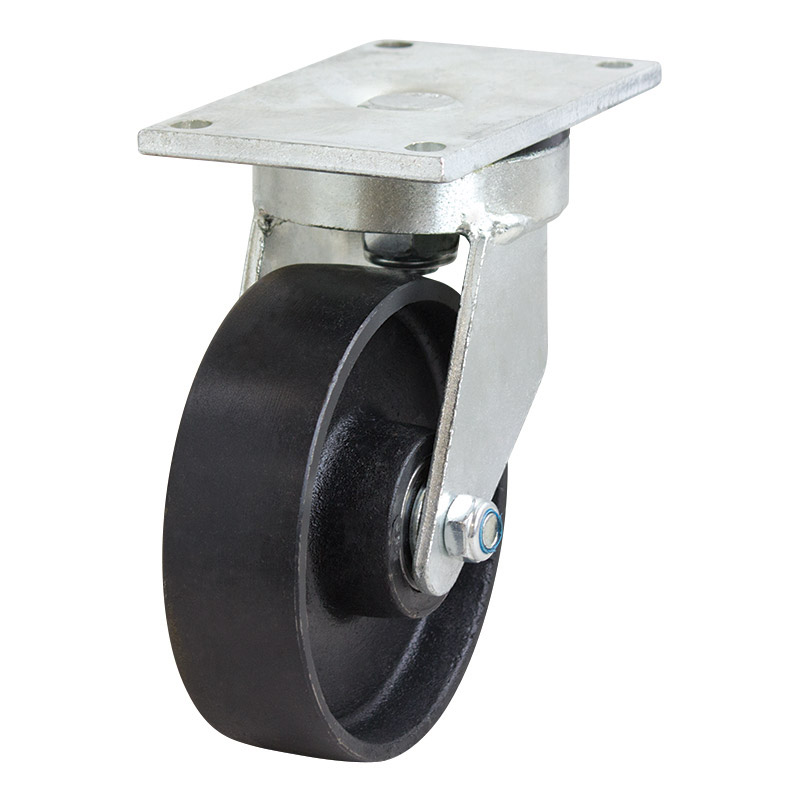

150mm Cast Iron Wheel 500kg Capacity Castor
Model Number: S6240
Frame Type: Swivel
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S6240 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci1601 |
The S6240 from Richmond Rolling Solutions is a swivel frame castor and features a cast iron wheel. This swivel castor is one of our 500 series range and has a maximum capacity of 500kg. The S6240 wheel is fitted with ball bearings. The swivel frame design of this castor allows full swivel rotation to enable steering. The cast iron wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: Ci601).
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond's 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer's due to the reliability and performance of this robust castor.
View Specifications
| Product Code | S6240 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci1601 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 194 |
| Swivel Radius (mm) | 130 |
| Maximum Load Capacity (kg) | 500 |
| Recommended Load Capacity (kg) | 380 |
| Towable | No |
