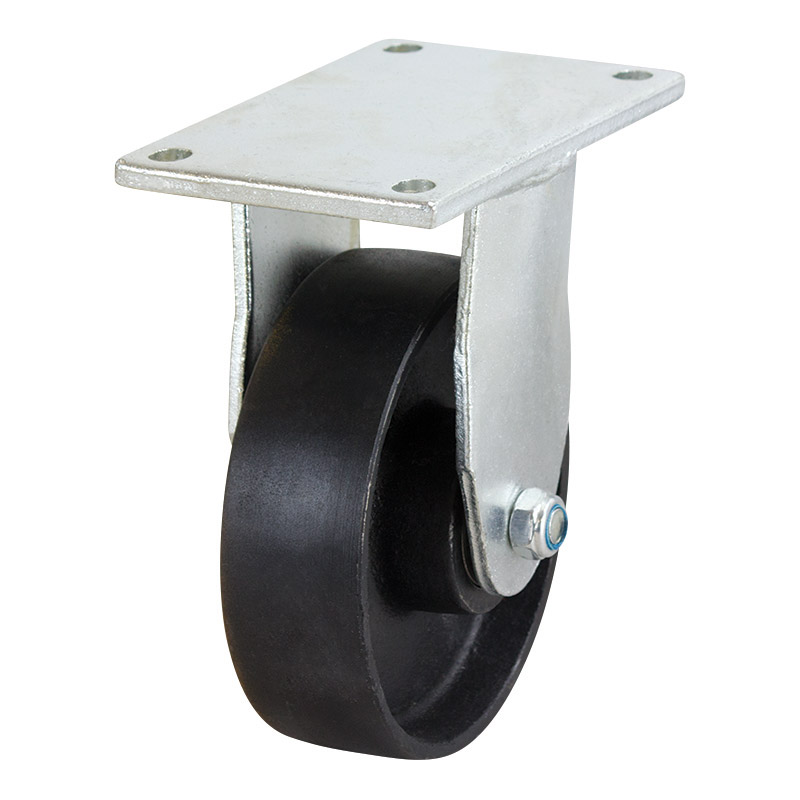

150mm Cast Iron Wheel 500kg Capacity Castor (R6241)

The R6241 from Richmond Rolling Solutions is a rigid frame castor and uses a cast iron wheel. This rigid castor is part of our 500 series range and has a maximum capacity of 500kg. The R6241 uses ball bearings for wheel rotation. This castors rigid frame only allows linear movement unless used with swivel castors. The cast iron wheel diameter is 150mm, the wheel width is 45mm and can be ordered separately (Ci601).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6241
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	45
Wheel Type	Cast Iron
Wheel Code	Ci1601
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Maximum Load Capacity (kg)	500
Recommended Load Capacity (kg)	380
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
