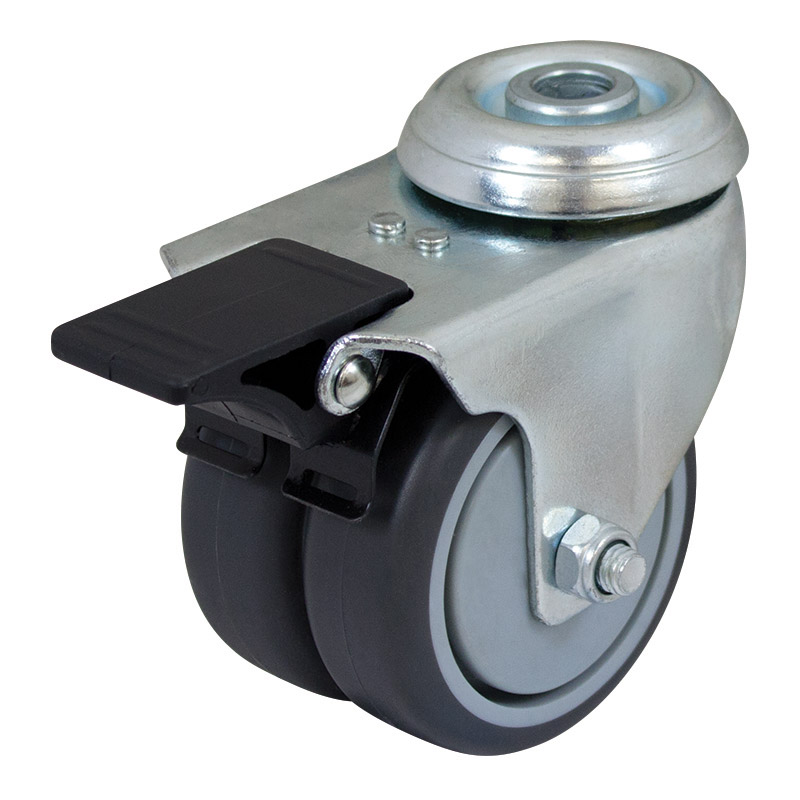

75mm Twin Wheel Utility Bolt Castor (S3722B)

The S3722B from Richmond Rolling Solutions is a swivel frame castor and is fitted with 2 institutional rubber wheels. This swivel castor is in our utility series twin wheel range and has a maximum capacity of 80kg. The S3722B is assembled with ball bearings on the castors axle. The swivel frame of this castor allows the castor to swivel 360°. The institutional rubber wheels diameter is 75mm, the wheels width is 2 x 25mm and you can order separately (Part Number: iR3301). For the same castor without a brake, see S3722.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases maneuverability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3722B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	2 x 25
Wheel Type	Institutional Rubber
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	98
Swivel Radius (mm)	100
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70
