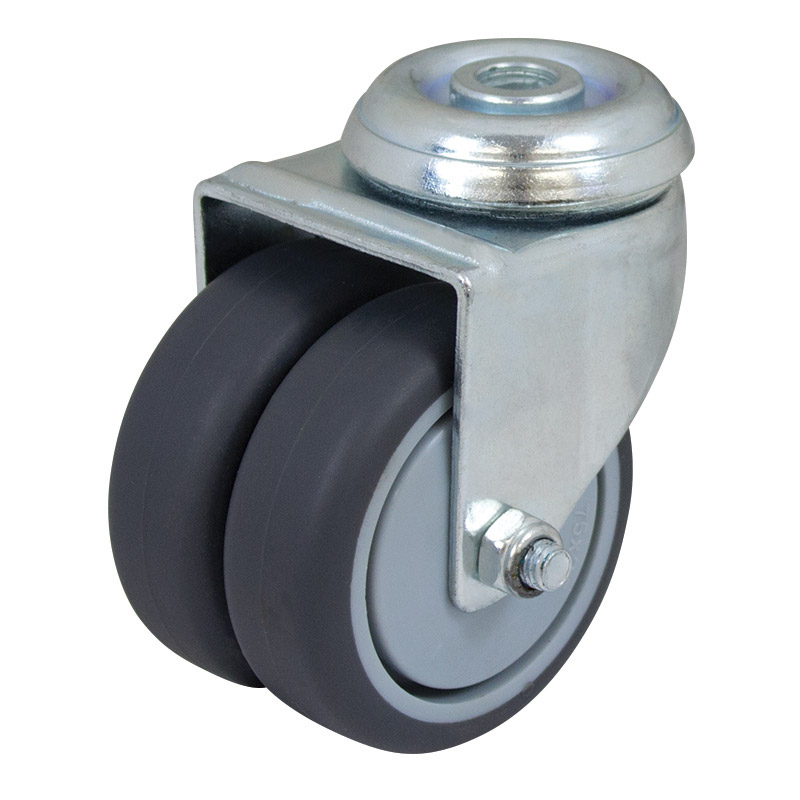

75mm Twin Wheel Utility Bolt Castor (S3722)

The S3722 manufactured by Richmond Rolling Solutions is a swivel frame castor and features 2 institutional rubber wheels. This swivel castor is one of our utility series twin wheel range and has a maximum capacity of 80kg. The S3722 wheel is fitted with ball bearings. The swivel frame design of this castor allows full swivel rotation to enable steering. The overall institutional rubber wheels diameter is 75mm, the wheels width is 2 x 25mm and can be ordered separately (iR3301). This model can also be ordered with a brake (part number S3722B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases manoeuvrability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3722
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	2 x 25
Wheel Type	Institutional Rubber
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	98
Swivel Radius (mm)	70
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
