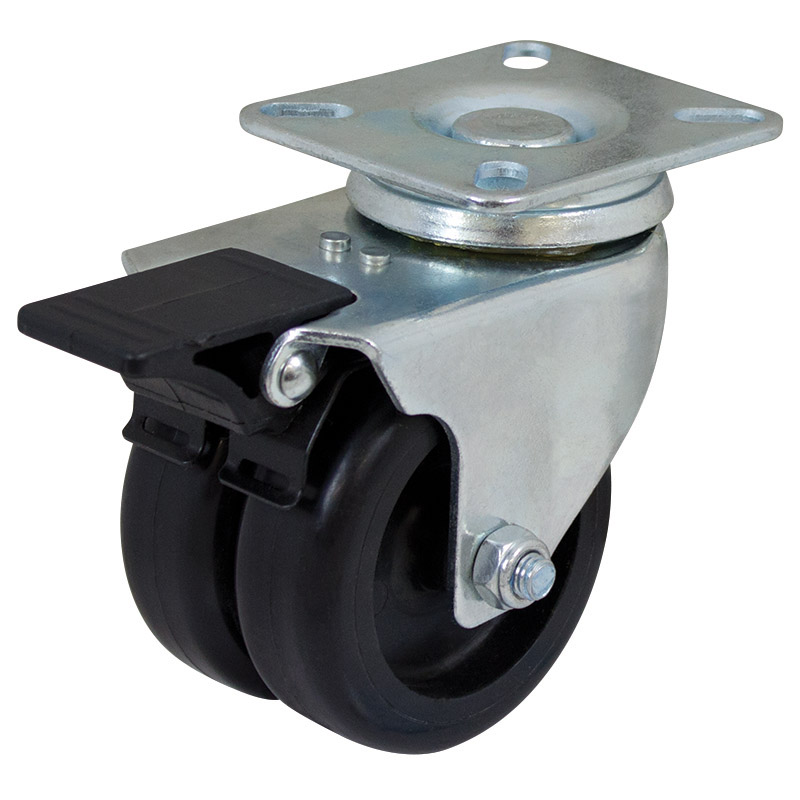

75mm Swivel Twin Wheel Utility Castor (S3716B)

The S3716B manufactured by Richmond is a swivel frame castor and features 2 nylon wheels. This swivel castor is one of our utility series twin wheel range and can hold loads up to 80kg. The S3716B uses plain bearings for wheel rotation. The swivel frame of this castor permits the load to be steered. The overall nylon wheels diameter is 75mm, the wheels width is 2 x 25mm and you can order separately. To order this castor without a brake, search for S3716.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases maneuverability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3716B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	2 x 25
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	101
Swivel Radius (mm)	100
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70
