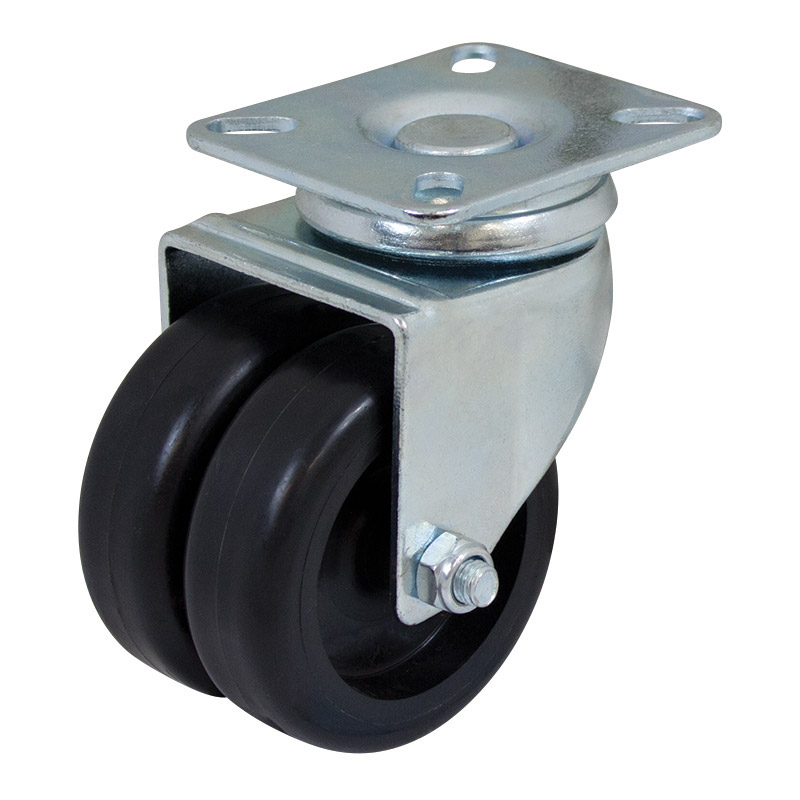

75mm Swivel Twin Wheel Utility Castor (S3716)

The S3716 from Richmond is a swivel frame castor and features 2 nylon wheels. This swivel castor is one of our utility series twin wheel range and can safely take loads up to 80kg. The S3716 wheel is fitted with plain bearings. The swivel frame of this castor permits the load to be steered. The nylon wheels diameter is 75mm, the wheels width is 2 x 25mm and can be ordered separately. This model can also be ordered with a brake (part number S3716B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases manoeuvrability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3716
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	2 x 25
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	101
Swivel Radius (mm)	70
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
