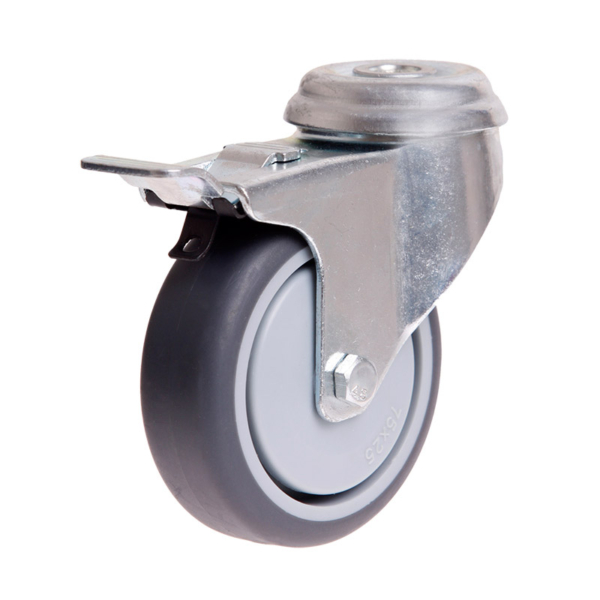

75mm Rubber Wheel 50kg Capacity Castor (S3714B)

The S3714B by Richmond is a swivel frame castor and has a institutional rubber wheel. This swivel castor is in our utility series range and has a maximum capacity of 50kg. The S3714B uses ball bearings for wheel rotation. The swivel frame design of this castor allows full swivel rotation to enable steering. The outside diameter of the institutional rubber wheel is 75mm, the wheel width is 25mm and you can order separately (Part Number: iR3301). For the same castor without a brake, see S3714.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code	3714B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	25
Wheel Type	Institutional Rubber
Wheel Code	IR3301
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	98
Swivel Radius (mm)	85
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	50
Recommended Load Capacity (kg)	40
