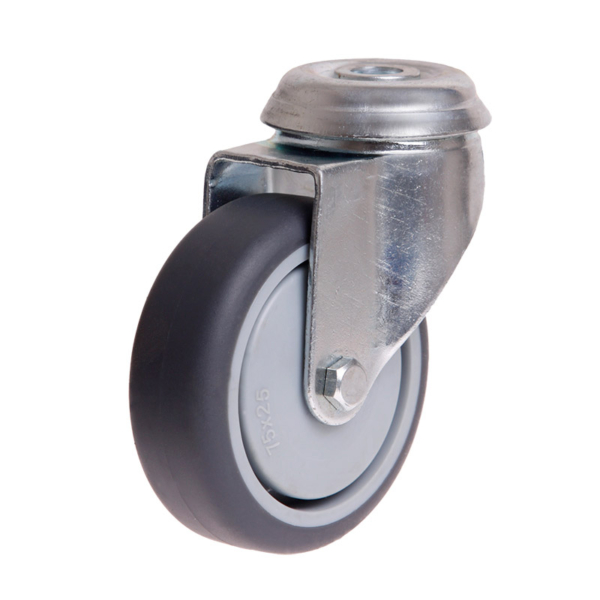

75mm Rubber Wheel 50kg Capacity Castor (S3714)

The S3714 from Richmond is a swivel frame castor and uses an institutional rubber wheel. This swivel castor is one of our utility series range and has a maximum capacity of 50kg. The S3714 uses ball bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The overall institutional rubber wheel diameter is 75mm, the wheel width is 25mm and you can order separately (Part Number: IR 3301). To order this castor with a brake, search for S3714B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code	S3714
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	25
Wheel Type	Institutional Rubber
Wheel Code	IR3301
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	98
Swivel Radius (mm)	65
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	50
Recommended Load Capacity (kg)	40
