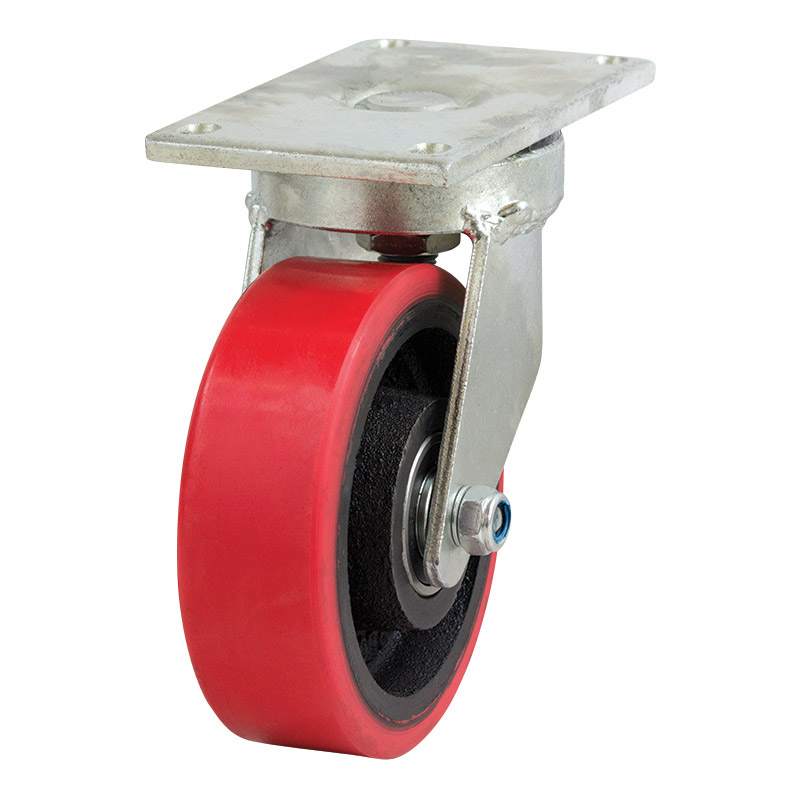

300mm Poly Ci Wheel 1000Kg Capacity Castor (S1204)

The S1204 by Richmond Rolling Solutions is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is part of our 1000 series range and has a maximum capacity of 1000kg. The S1204 uses ball bearings for wheel rotation. The swivel frame design of this castor allows for full 360° swivel rotation. The outside diameter of the polyurethane tyred cast iron wheel is 300mm, the wheel width is 50mm and you can order separately (Part Number: PU1218).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	S1204
Wheel Diameter (mm)	300
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1218
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	360
Swivel Radius (mm)	215
Maximum Load Capacity (kg)	1000
Towable	Yes

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
