300mm Poly Ci Wheel 1000Kg Capacity Castor (R1205)

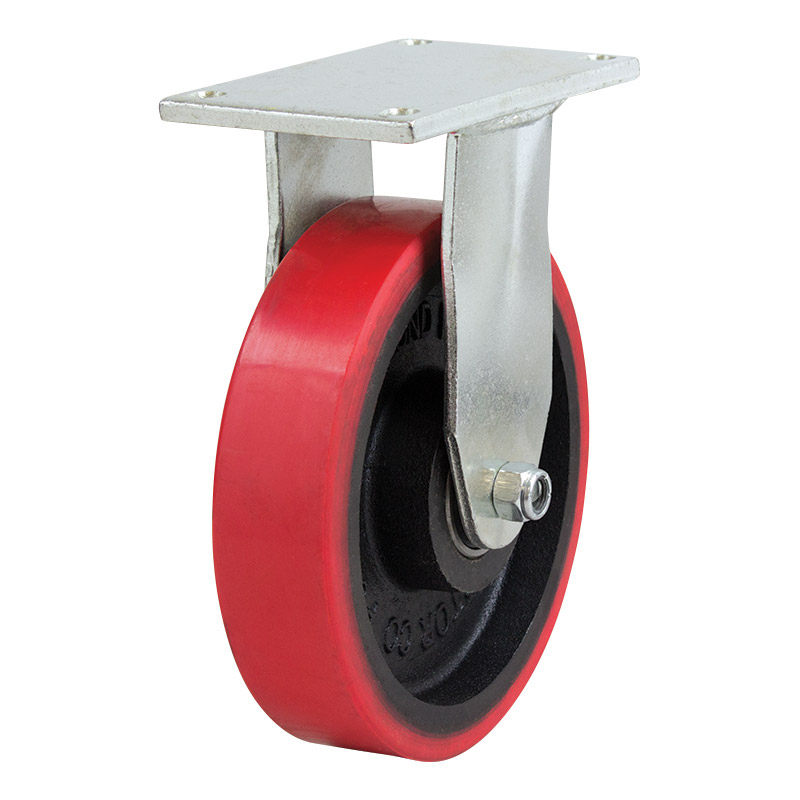

The R1205 from Richmond is a rigid frame castor and features a polyurethane tyred cast iron wheel. This rigid castor is one of our 1000 series range and can safely take loads up to 1000kg. The R1205 is assembled with ball bearings on the castors axle. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The outside diameter of the polyurethane tyred cast iron wheel is 300mm, the wheel width is 50mm and you can order separately (Part Number: PU1218).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	R1205
Wheel Diameter (mm)	300
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1218
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	360
Swivel Radius (mm)	215
Maximum Load Capacity (kg)	1000
Towable	Yes
