250mm Poly Ci Wheel 5000kg Capacity Castor (S1093D)

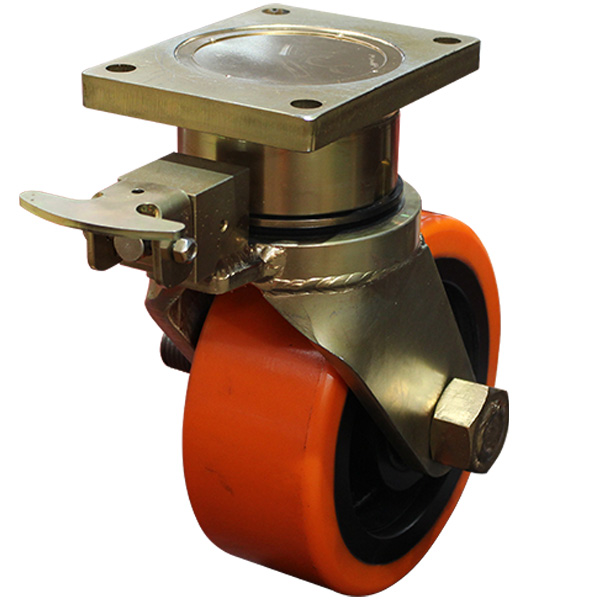

The S1093D manufactured by Richmond Rolling Solutions is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is one of our 5000 series range and has a maximum capacity of 5000kg. The S1093D uses taper roller bearings for wheel rotation. The swivel frame design of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 250mm, the wheel width is 100mm and you can order separately (Part Number: PU1049). For the same castor without a direction lock, see S1093.

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.

View Specifications View Specifications Shipping Information

Specifications

Product Code	S1093D
Wheel Diameter (mm)	250
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	100
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1049
Wheel Bearing Type	Taper Roller Bearing
Castor Height (mm)	370
Swivel Radius (mm)	210
Maximum Load Capacity (kg)	5000

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
