250mm Poly Ci Wheel 5000kg Capacity Castor (S1093)

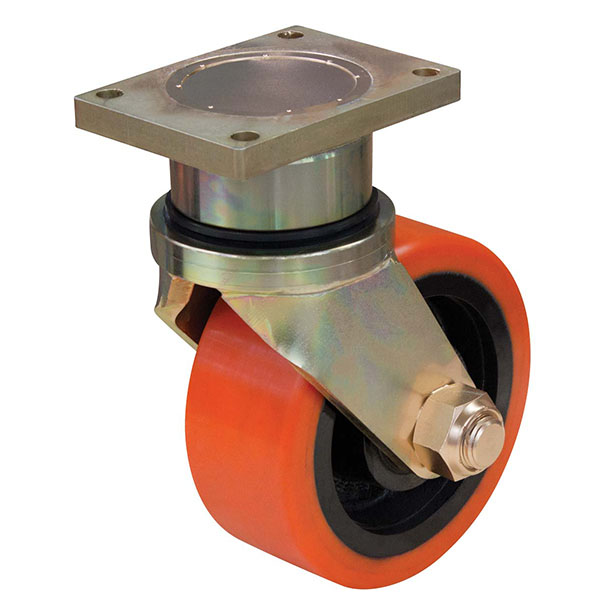

The S1093 manufactured by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is one of our 5000 series range and has a maximum capacity of 5000kg. The S1093 is assembled with taper roller bearings on the castors axle. The swivel frame design of this castor allows the load to be steered. The diameter of the polyurethane tyred cast iron wheel is 250mm, the wheel width is 100mm and can be ordered separately (PU1049). This model can also be ordered with a brake (part number S1093B).

View Specifications View Specifications Shipping Information

Specifications

Product Code	S1093
Wheel Diameter (mm)	250
Frame Type	Swivel
Wheel Width (mm)	100
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1049
Wheel Bearing Type	Taper Roller Bearing
Castor Height (mm)	370
Swivel Radius (mm)	210
Maximum Load Capacity (kg)	5000

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
