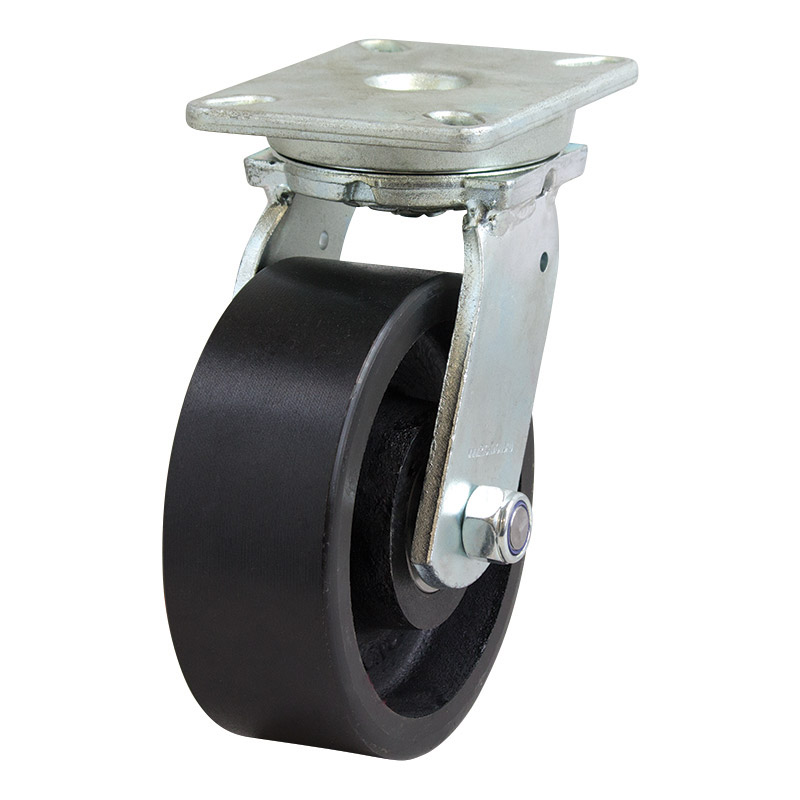

200mm SG Iron Wheel 1500Kg Capacity Castor (S8000)

The S8000 from Richmond Rolling Solutions is a swivel frame castor and features an SG Iron wheel. This swivel castor is part of our forged head series range and has a top load capacity of 1500kg. The S8000 uses ball bearings for wheel rotation. The swivel frame of this castor allows the castor to swivel 360°. The semi pneumatic wheel diameter is 200mm, the wheel width is 75mm and can be ordered separately (SG822).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

Product Code	S8000
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	75
Wheel Type	SG Iron
Wheel Code	SG822
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	268
Swivel Radius (mm)	156
Maximum Load Capacity (kg)	1500
Towable	No
