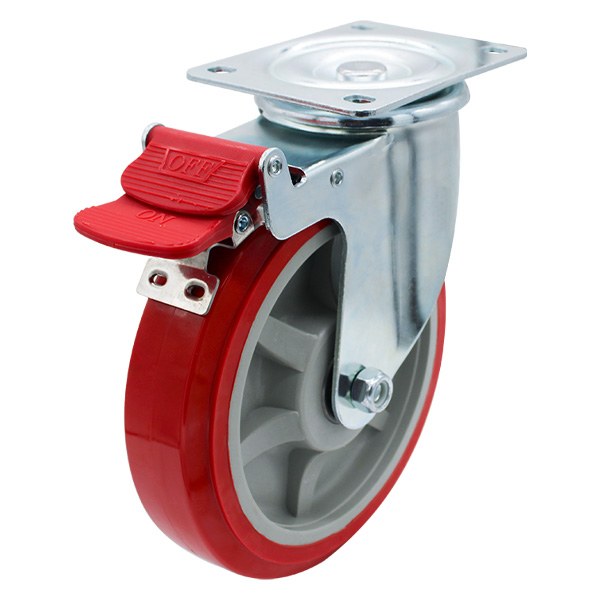

200mm Polyurethane Tyre on Nylon Centre Wheel 300kg Capacity Castor (S8044B)

The S8044B by Richmond is a swivel frame castor and has a polyurethane wheel. This swivel castor is in our 300 series plate range and has a top load capacity of 300kg. The S8044B is assembled with ball bearings on the castors axle and is plate mount. The swivel frame allows the load to be steered. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU8071). To order this castor without a brake, search for S8044.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S8044B
Wheel Diameter (mm)	200
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU8071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	237
Swivel Radius (mm)	170
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
