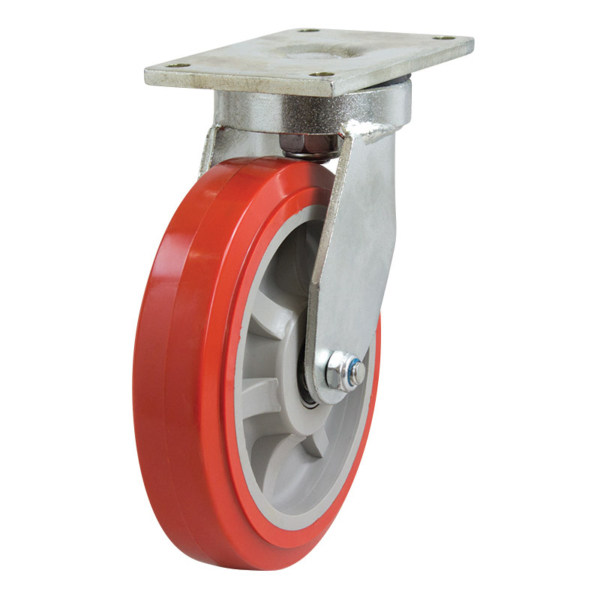

200mm Poly Nylon Wheel 400Kg Capacity Castor (S8214)

The S8214 manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is in our 500 series range and has a top load capacity of 400kg. The S8214 is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows full swivel rotation to enable steering. The diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU8071).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S8214
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU8071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Swivel Radius (mm)	155
Maximum Load Capacity (kg)	400
recommended-load-capacity-kg
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
