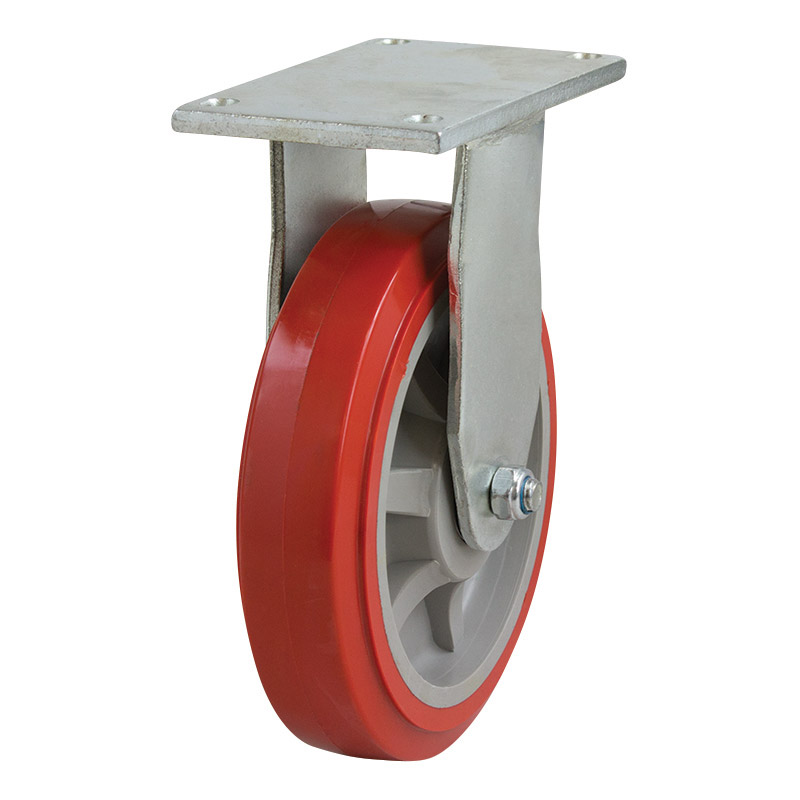

200mm Poly Nylon Wheel 400Kg Capacity Castor (R8215)

The R8215 from Richmond Rolling Solutions is a rigid frame castor and uses a polyurethane wheel. This rigid castor is part of our 500 series range and can hold loads up to 400kg. The R8215 uses ball bearings for wheel rotation. The rigid frame design of this castor allows for steering only when used with swivel castors. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 40mm and you can order separately (Part Number: PU8071).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R8215
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU8071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Maximum Load Capacity (kg)	400
Recommended Load Capacity (kg)	300
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
