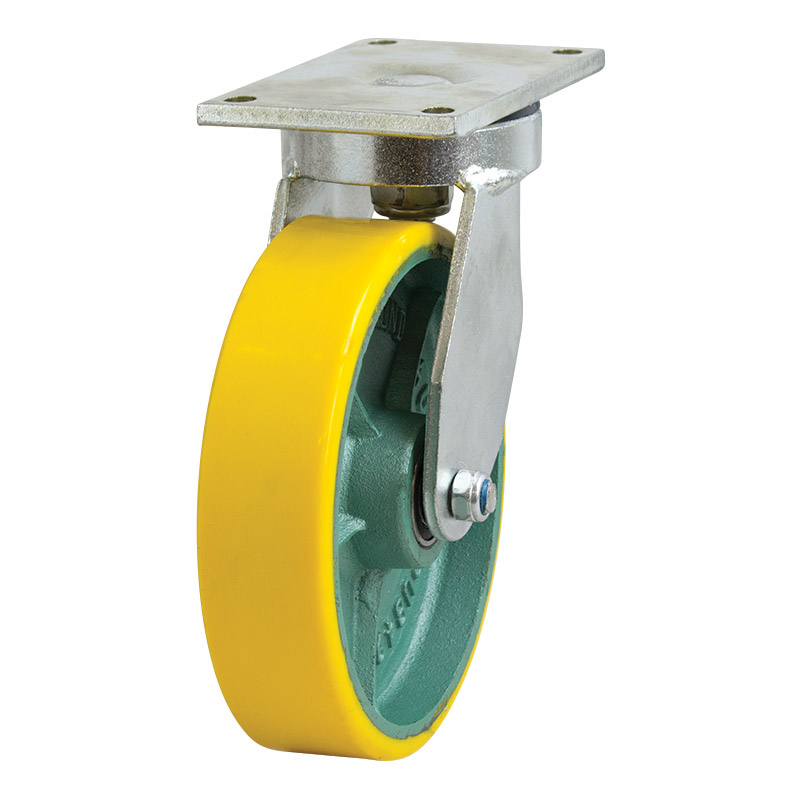

200mm Poly Ci Wheel 500Kg Capacity Castor (S8470)

The S8470 from Richmond is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is part of our 500 series range and has a top load capacity of 500kg. The S8470 wheel is fitted with ball bearings. The swivel frame design of this castor allows for full 360° swivel rotation. The diameter of the polyurethane tyred cast iron wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S8470
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU849
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Swivel Radius (mm)	155
Maximum Load Capacity (kg)	500
recommended-load-capacity-kg
Towable	Yes

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
