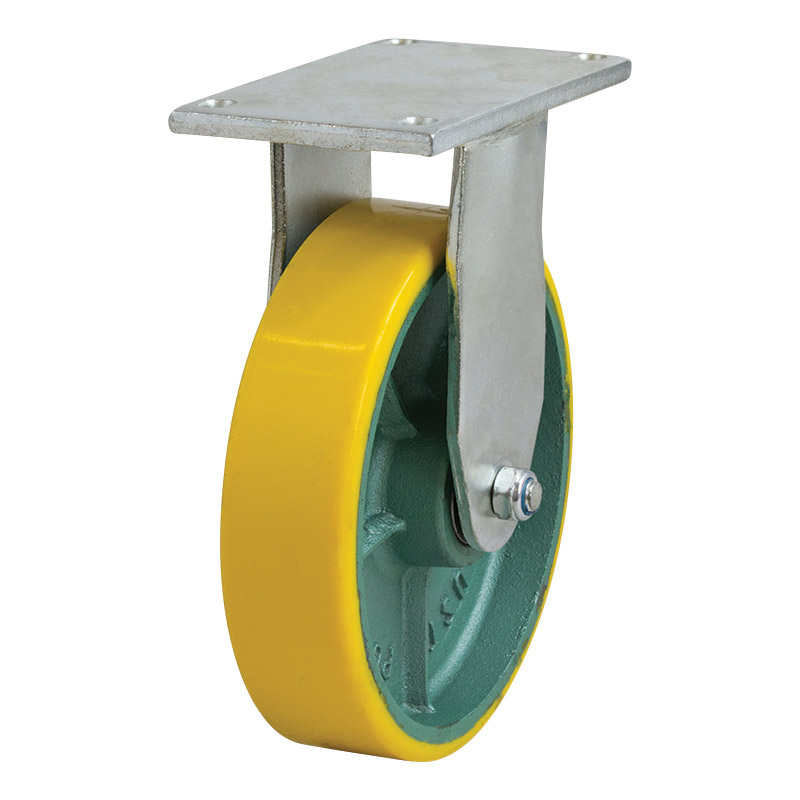

200mm Poly Ci Wheel 500Kg Capacity Castor (R8471)

The R8471 by Richmond Rolling Solutions is a rigid frame castor and uses a polyurethane tyred cast iron wheel. This rigid castor is in our 500 series range and can hold loads up to 500kg. The R8471 uses ball bearings for wheel rotation. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The diameter of the polyurethane tyred cast iron wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R8471
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU849
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Maximum Load Capacity (kg)	500
Recommended Load Capacity (kg)	380
Towable	Yes
