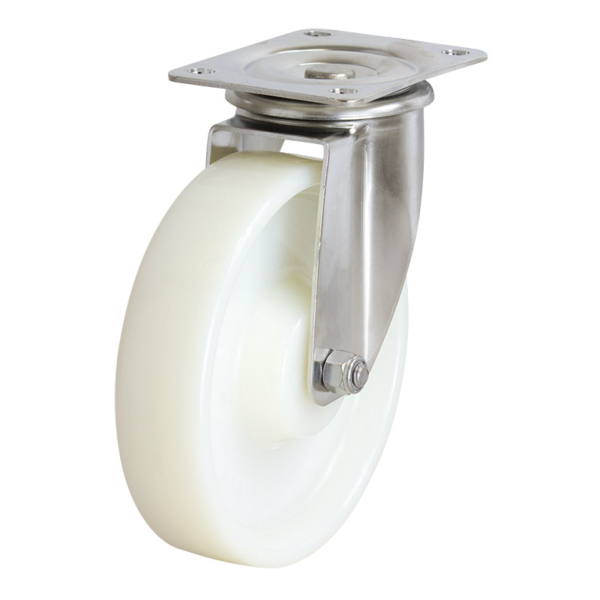

200mm Nylon Wheel 380kg Capacity Castor (S8142)

The S8142 by Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is in our stainless steel excel plate range and can safely take loads up to 380kg. The S8142 is assembled with plain bearings on the castors axle and is baseplate mount. The swivel frame allows for full 360° swivel rotation. The diameter of the nylon wheel is 200mm, the wheel width is 45mm and can be ordered separately (NY800). To order this castor with a brake, search for S8142B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code	S8142
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	45
Wheel Type	Nylon
Wheel Code	NY800
Wheel Bearing Type	Plain Bore
Castor Height (mm)	237
Swivel Radius (mm)	150
Maximum Load Capacity (kg)	380
Recommended Load Capacity (kg)	350
