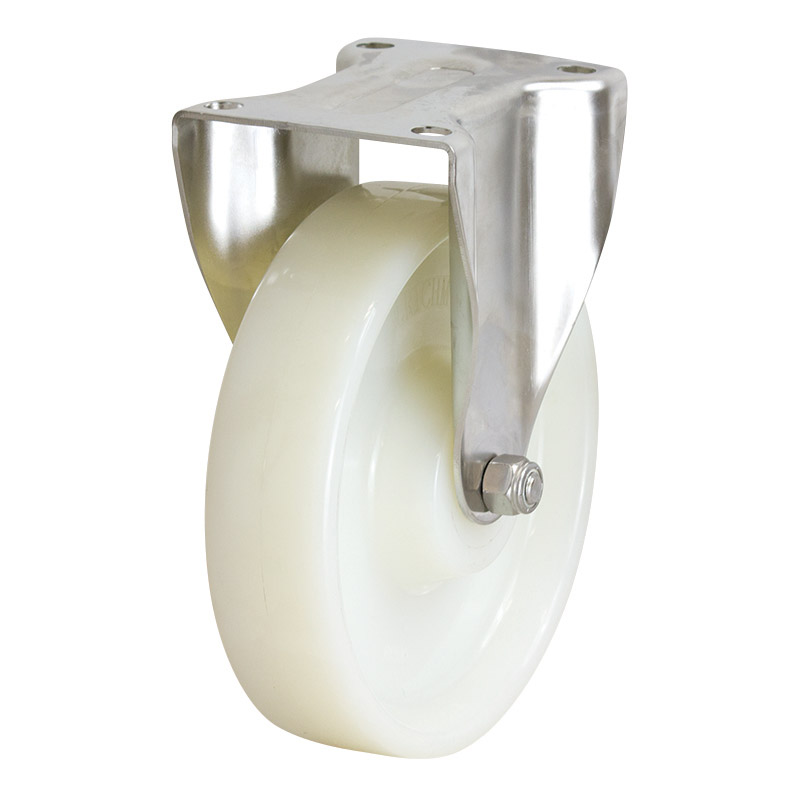

200mm Nylon Wheel 380kg Capacity Castor (R8143)

The R8143 from Richmond Rolling Solutions is a rigid frame castor and uses a nylon wheel. This rigid castor is in our stainless steel excel plate range and can safely take loads up to 380kg. The R8143 uses plain bearings for wheel rotation and is plate mount. The rigid frame is ideal for linear movement however steering can be achieved by using with swivel castors. The overall nylon wheel diameter is 200mm, the wheel width is 45mm and can be ordered separately (NY800).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code	R8143
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	45
Wheel Type	Nylon
Wheel Code	NY800
Wheel Bearing Type	Plain Bore
Castor Height (mm)	237
Maximum Load Capacity (kg)	380
Recommended Load Capacity (kg)	350

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
