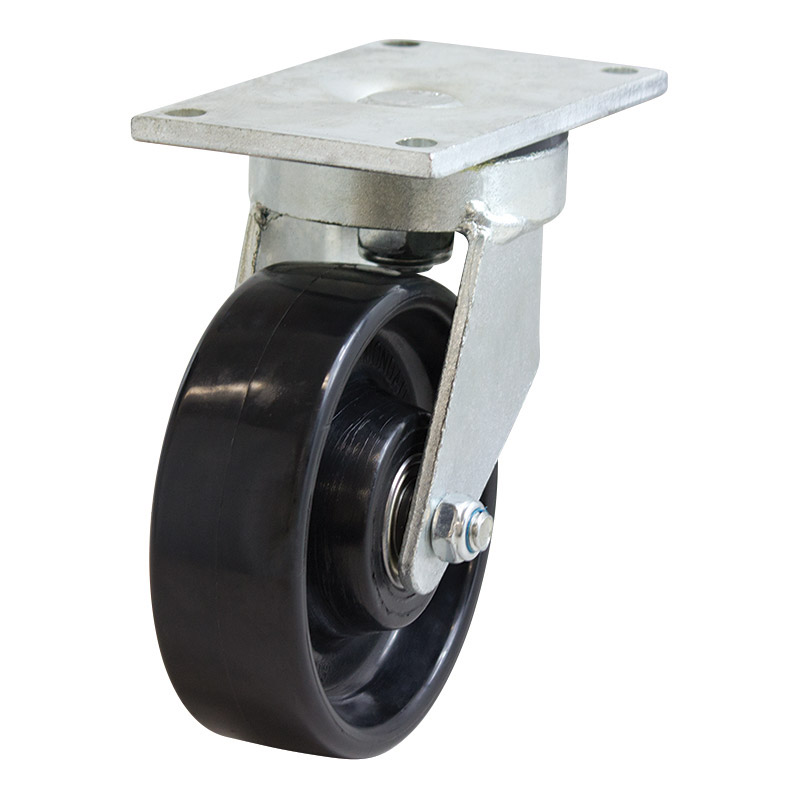

150mm Nylon Wheel 400kg Capacity Castor (S6060)

The S6060 from Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is in our 500 series range and has a maximum capacity of 400kg. The S6060 uses plain bearings for wheel rotation. The swivel frame design of this castor permits the load to be steered. The diameter of the nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: NY652).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S6060
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY652
Wheel Bearing Type	Stainless Steel Sleeve
Castor Height (mm)	194
Swivel Radius (mm)	130
Maximum Load Capacity (kg)	400
recommended-load-capacity-kg
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
