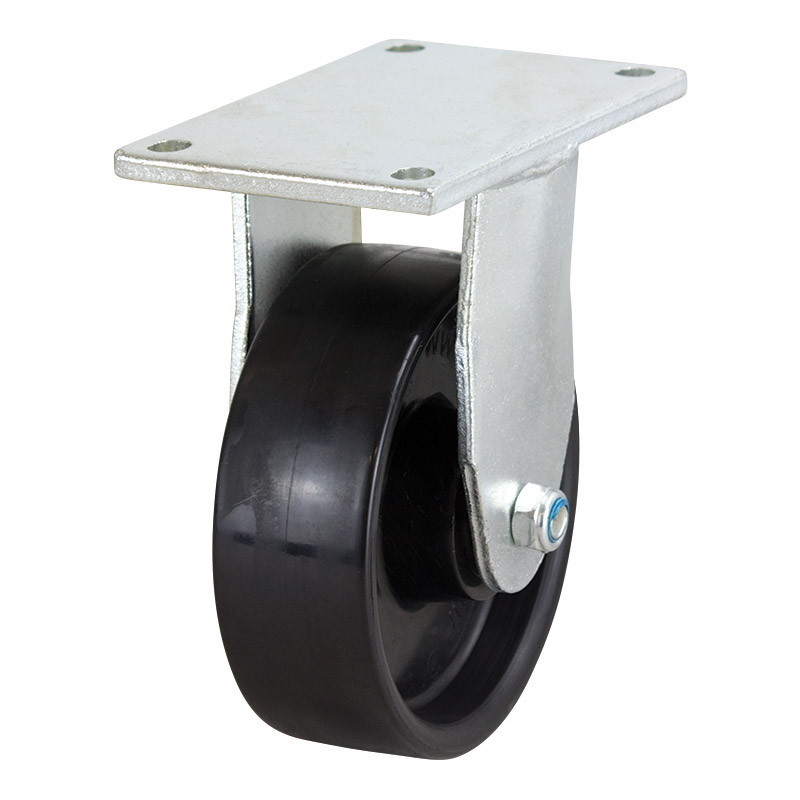

150mm Nylon Wheel 400kg Capacity Castor (R6061)

The R6061 from Richmond is a rigid frame castor and features a nylon wheel. This rigid castor is in our 500 series range and can hold loads up to 400kg. The R6061 uses plain bearings for wheel rotation. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The nylon wheel diameter is 150mm, the wheel width is 50mm and can be ordered separately (NY652).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6061
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY652
Wheel Bearing Type	Stainless Steel Sleeve
Castor Height (mm)	194
Maximum Load Capacity (kg)	400
Recommended Load Capacity (kg)	300
Towable	No
