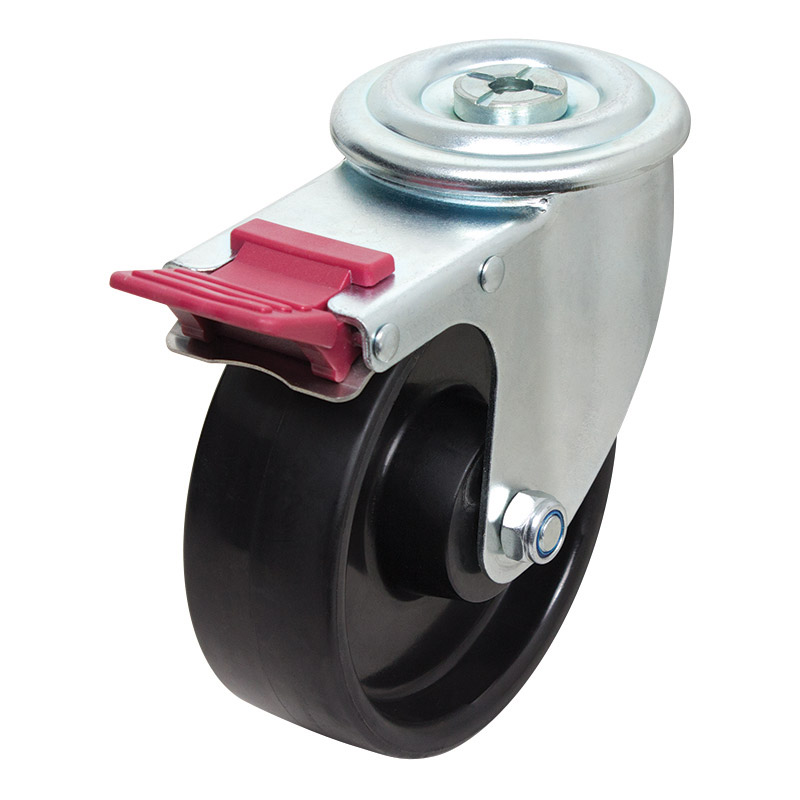

150mm Nylon Bolt Hole 300 Series Castor (S6222B)

The S6222B from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our 300 series bolt hole range and has a top load capacity of 300kg. The S6222B uses plain bearings for wheel rotation and is bolt mounted. The swivel frame permits the load to be steered. The diameter of the nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: NY652). This model can also be ordered without a brake (part number S6222).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S6222B
Wheel Diameter (mm)	150
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY652
Wheel Bearing Type	Plain Bore
Castor Height (mm)	181
Swivel Radius (mm)	150
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	250
