150mm Nylon Bolt Hole 300 Series Castor
Model Number: S6222
Frame Type: Swivel
- Swivel
- Swivel Brake
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S6222 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Nylon |
| Wheel Code | NY652 |

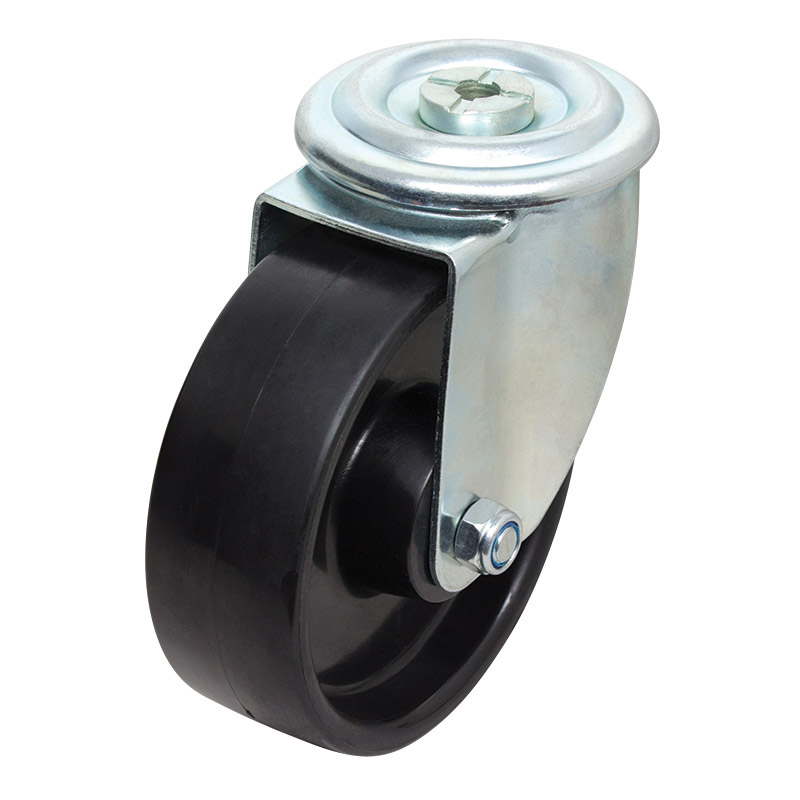

The S6222 from Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is in our 300 series bolt hole range and can safely take loads up to 300kg. The S6222 uses plain bearings for wheel rotation and is bolt mount. The swivel frame allows full swivel rotation to enable steering. The diameter of the nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: NY652). For the same castor with a brake, see S6222B.
Richmond's industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.
View Specifications
| Product Code | S6222 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Nylon |
| Wheel Code | NY652 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 181 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 250 |
