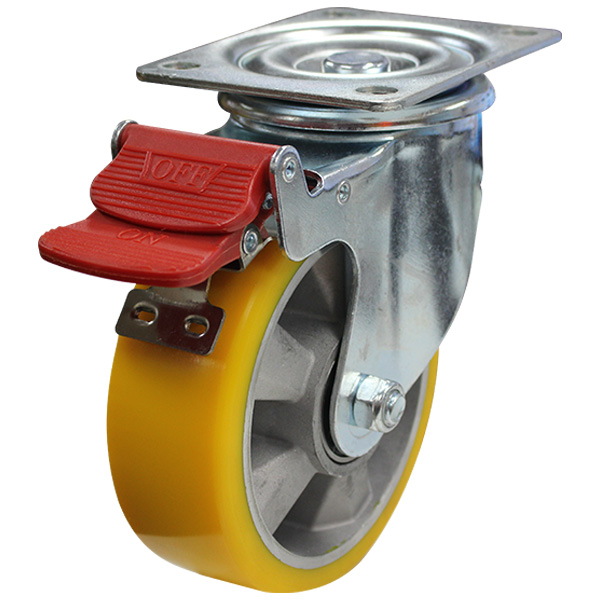

150mm Crowned Polyurethane Tyre on Aluminium Centre Wheel 300kg Capacity Castor (S6024B)

The S6024B by Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 300kg. The S6024B is assembled with ball bearings on the castors axle and is baseplate mount. This castors swivel frame allows full swivel rotation to enable steering. The polyurethane wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU607). For the same castor without a brake, see S6024.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S6024B
Wheel Diameter (mm)	150
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Crowned Polyurethane
Wheel Code	PU607
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	187
Swivel Radius (mm)	170
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
