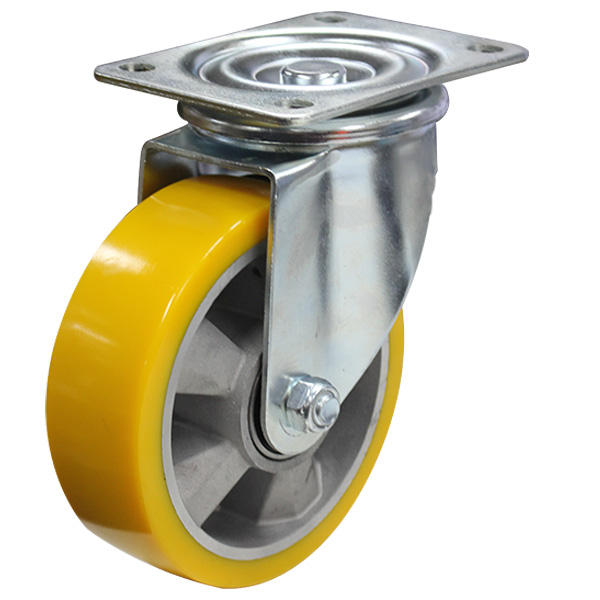

150mm Crowned Polyurethane Tyre on Aluminium Centre Wheel 300kg Capacity Castor (S6024)

The S6024 from Richmond Rolling Solutions is a swivel frame castor and features a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 300kg. The S6024 uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The outside diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU607). To order this castor with a brake, search for S6024B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S6024
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Crowned Polyurethane
Wheel Code	PU607
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	187
Swivel Radius (mm)	127
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
