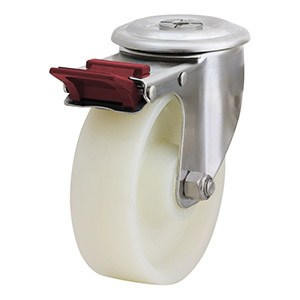

125mm Nylon Wheel 200kg Capacity Castor (S5146B)

The S5146B manufactured by Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our stainless steel excel bolt range and has a maximum capacity of 200kg. The S5146B is assembled with plain bearings on the castors axle and is bolt mounted. This castors swivel frame allows for full 360° swivel rotation. The nylon wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (NY501). This model can also be ordered without a brake (part number S5146).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Heavy duty pressed stainless steel frame combined with full stainless componentry make the Excel Series the ideal choice for use in wet areas, frequent wash down applications and food and health industries. When hygiene is of the utmost importance, this bolt hole castor has the ability to be fitted to an array of equipment and trolleys with various fittings including; pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt.

Product Code	S5146B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	157
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
