125mm Nylon Wheel 200kg Capacity Castor (S5146)

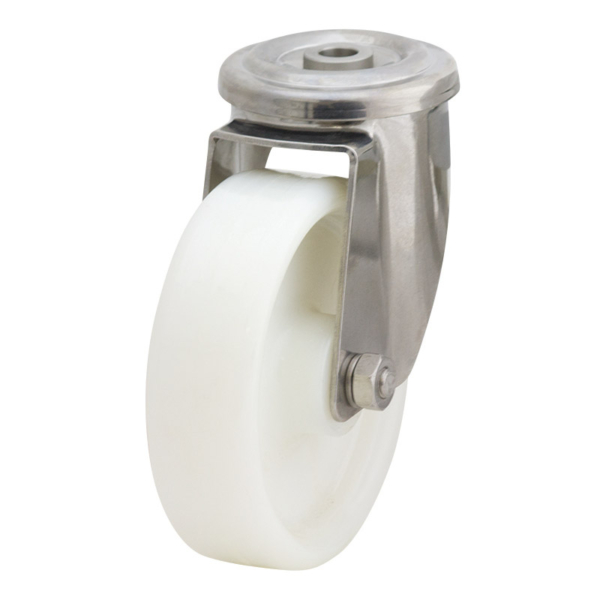

The S5146 manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is in our stainless steel excel bolt range and has a top load capacity of 200kg. The S5146 wheel is fitted with plain bearings and is bolt mount. The swivel frame design of this castor permits the load to be steered. The nylon wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (NY501). To order this castor with a brake, search for S5146B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Heavy duty pressed stainless steel frame combined with full stainless componentry make the Excel Series the ideal choice for use in wet areas, frequent wash down applications and food and health industries. When hygiene is of the utmost importance, this bolt hole castor has the ability to be fitted to an array of equipment and trolleys with various fittings including; pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt.

Product Code	S5146
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	157
Swivel Radius (mm)	112
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
