125mm Nylon Spring Loaded Gate Wheel 30kg Capacity (S5025)

125mm Nylon Spring Loaded Gate Wheel 30kg Capacity (S5025)

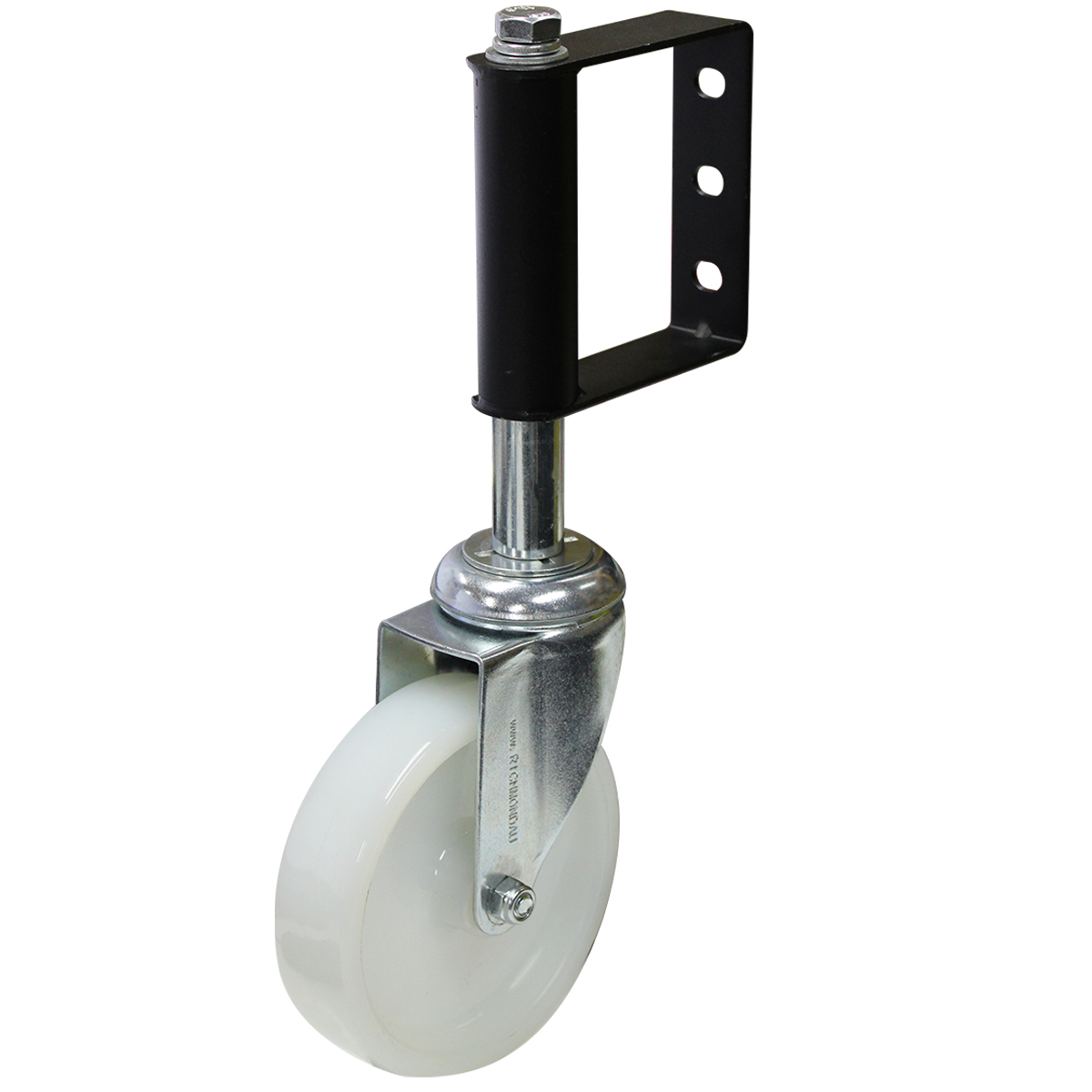

Our range of spring loaded gate wheels are ideal for use over uneven surfaces. They have exceptional shock absorbing qualities, and make the closing and opening of residential gates easier. This range features an enclosed spring design to reduce pinch-points and corrosion.

They are supplied with an attractive black steel frame which is also compatible with any castor with an M12 bolt hole. This model is supplied complete with a 125mm nylon castor, which is hard-wearing and ideal for wet environments. These wheels have also been designed for use on platform ladders that require manoeuvrability combined with locking under load.

View Specifications View Specifications Shipping Information

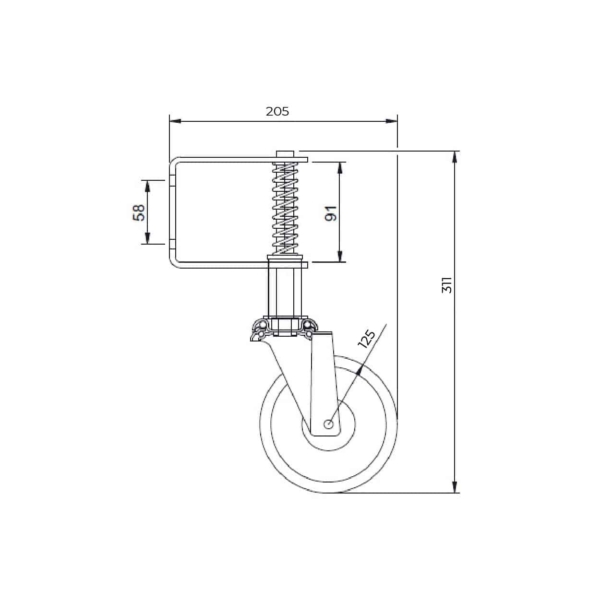

Specifications

Product Code	S5025
Wheel Diameter (mm)	125
Frame Type	Swivel with Enclosed Spring
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY5517
Wheel Bearing Type	Plain Bore
Castor Height (mm)	159
Swivel Radius (mm)	102
Bolt Size	M12
Maximum Load Capacity (kg)	20

Enclosed Spring

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
