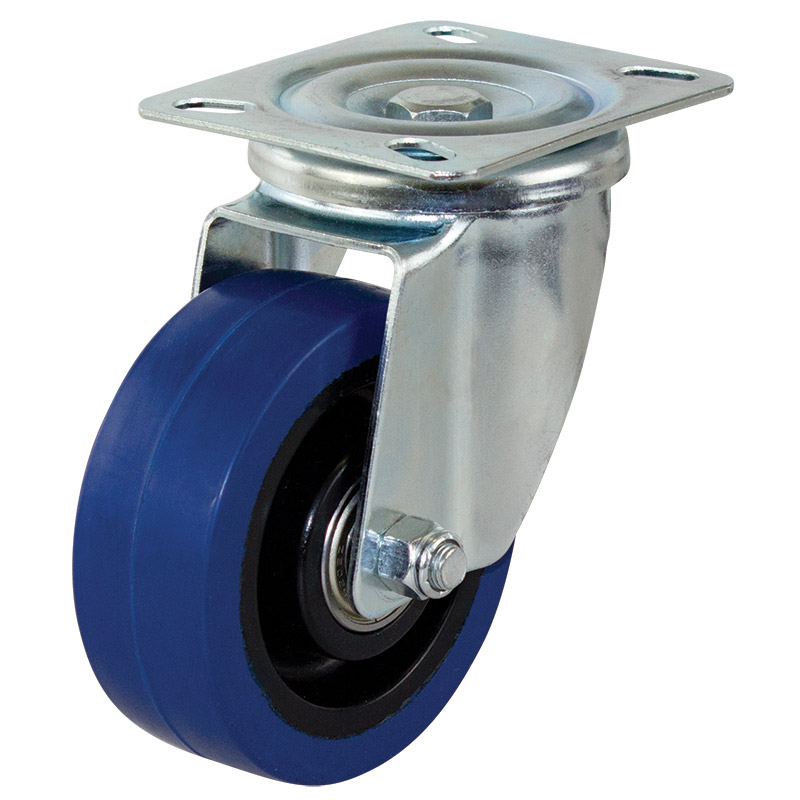

100mm Rebound Rubber Wheel 150kg Capacity Castor (S4042)

The S4042 from Richmond is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 150kg. The S4042 uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame permits the load to be steered. The diameter of the rebound rubber wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077). This model can also be ordered with a brake (part number S4042B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4042
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Rebound Rubber
Wheel Code	RR4077
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	130
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	150
Recommended Load Capacity (kg)	110

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
