100mm Rebound Rubber Wheel 150kg Capacity Castor (R4043)

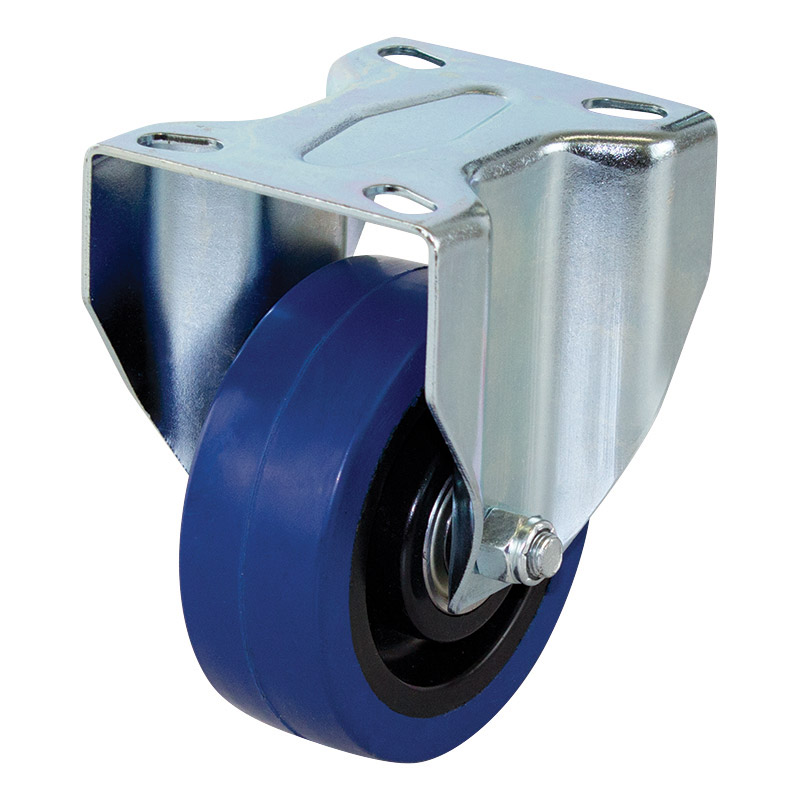

The R4043 manufactured by Richmond Rolling Solutions is a rigid frame castor and is fitted with a rebound rubber wheel. This rigid castor is in our 300 series plate range and can hold loads up to 150kg. The R4043 uses ball bearings for wheel rotation and is baseplate mount. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The overall rebound rubber wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R4043
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	35
Wheel Type	Rebound Rubber
Wheel Code	RR4077
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	130
Maximum Load Capacity (kg)	150
Recommended Load Capacity (kg)	110
