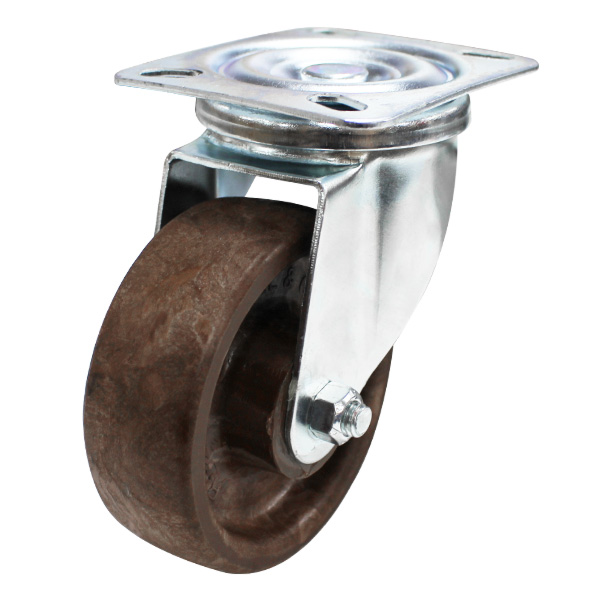

100mm Glass Filled Nylon Wheel 200kg Capacity Castor (S4060)

The S4060 manufactured by Richmond Rolling Solutions is a swivel frame castor and uses a glass filled nylon wheel. This swivel castor is one of our 300 series plate range and can hold loads up to 200kg. The S4060 is assembled with plain bearings on the castors axle and is baseplate mount. This castors swivel frame permits the load to be steered. The overall glass filled nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (GF412).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4060
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Glass Filled Nylon
Wheel Code	GF412
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
Temperature range (°C)	-30° to 240°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
