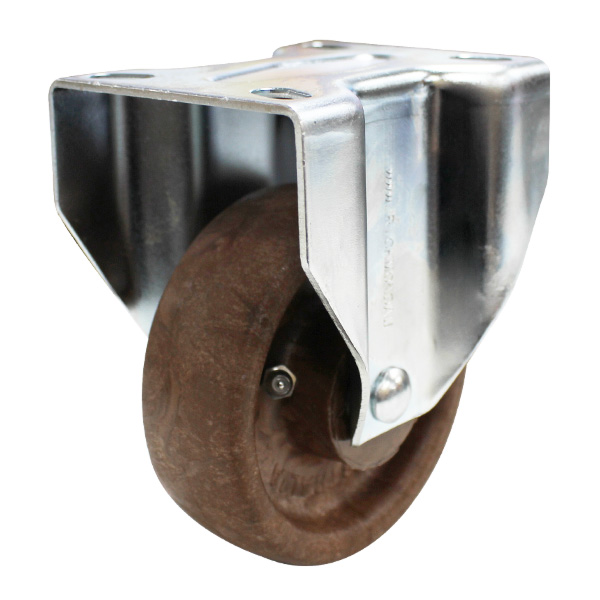

100mm Glass Filled Nylon Wheel 200kg Capacity Castor (R4061)

The R4061 manufactured by Richmond is a rigid frame castor and has a glass filled nylon wheel. This rigid castor is part of our 300 series plate range and has a maximum capacity of 200kg. The R4061 wheel is fitted with plain bearings and is baseplate mount. The rigid frame design of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The glass filled nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (GF412).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R4061
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	35
Wheel Type	Glass Filled Nylon
Wheel Code	GF412
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
Temperature range (°C)	-30° to 240°
