75mm Poly Ci Wheel 240Kg Capacity Castor
Model Number: S327B
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S327B |
|---|---|
| Wheel Diameter (mm) | 75 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 25 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU350 |

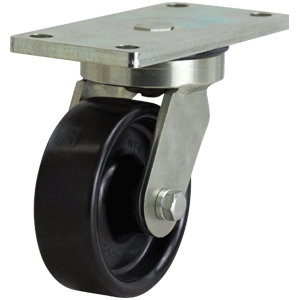

The S327B by Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is in our heavy duty welded series range and has a maximum capacity of 240kg. The S327B uses ball bearings for wheel rotation. The swivel frame design of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 75mm, the wheel width is 25mm and you can order separately (Part Number: PU350).
Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.
View Specifications
| Product Code | S327B |
|---|---|
| Wheel Diameter (mm) | 75 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 25 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU350 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 114 |
| Swivel Radius (mm) | 76 |
| Maximum Load Capacity (kg) | 240 |
| Recommended Load Capacity (kg) | 180 |
