75mm Nylon Wheel 80kg Capacity Castor (S3390)

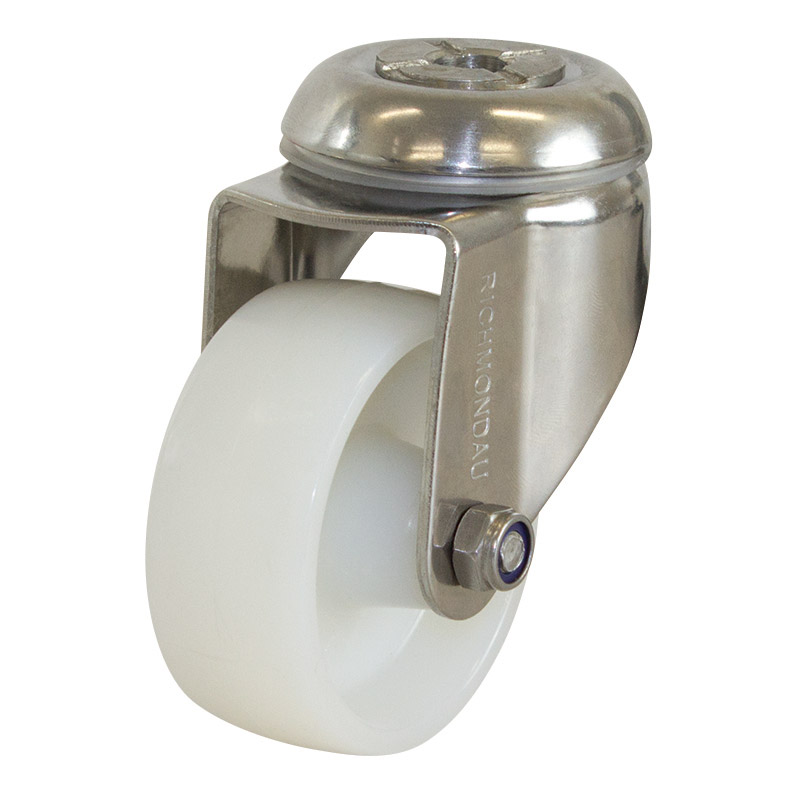

S3390 manufactured by Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is in our stainless steel elite bolt range and has a maximum capacity of 80kg. The S3390 is assembled with plain bearings on the castors axle and is bolt mounted. The swivel frame design of this castor allows for full 360° swivel rotation. The overall nylon wheel diameter is 75mm, the wheel width is 30mm and can be ordered separately (NY3321). This model can also be ordered with a brake (part number S3390B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code	S3390
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY3321
Wheel Bearing Type	Plain Bore
Castor Height (mm)	105
Swivel Radius (mm)	70
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.

Also in Stainless Steel Elite Plate Castors

These castors are manufactured from grade 304 stainless steel for health and hygiene applications, such as on medical or laboratory equipment. They are also seen fitted to food carts that are frequently moved through coolrooms and steamy kitchens. This range can be hose cleaned.

View Stainless Steel Elite Plate Castors
