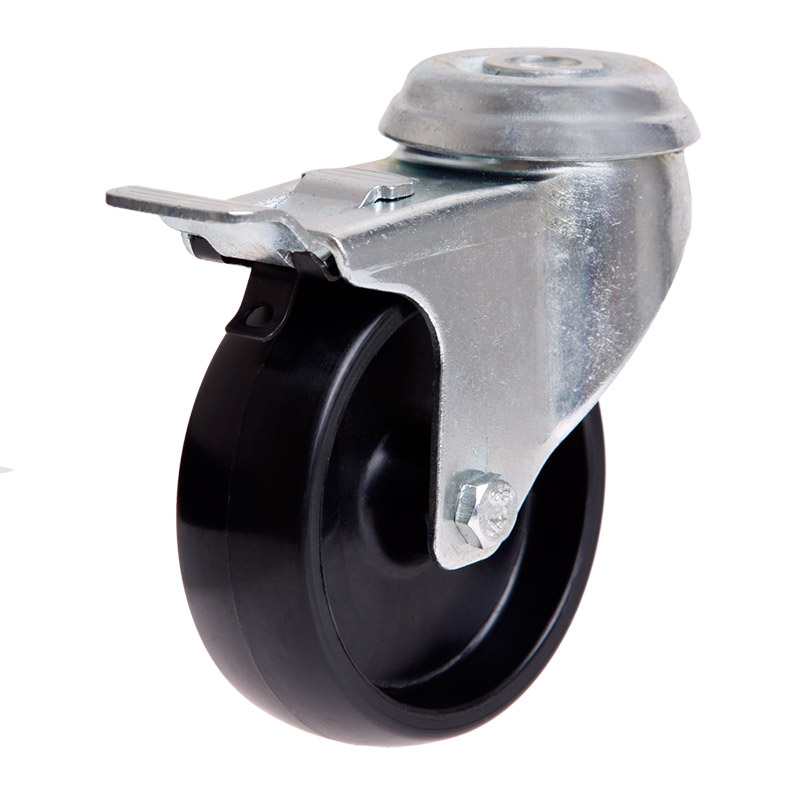

75mm Nylon Wheel 50kg Capacity Castor (S3712B)

The S3712B manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our utility series range and has a maximum capacity of 50kg. The S3712B uses plain bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 75mm, the wheel width is 25mm and can be ordered separately (NY3324). To order this castor without a brake, search for S3712.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code	S3712B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	25
Wheel Type	Nylon
Wheel Code	NY3324
Wheel Bearing Type	Plain Bore
Castor Height (mm)	98
Swivel Radius (mm)	85
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	50
Recommended Load Capacity (kg)	40

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
