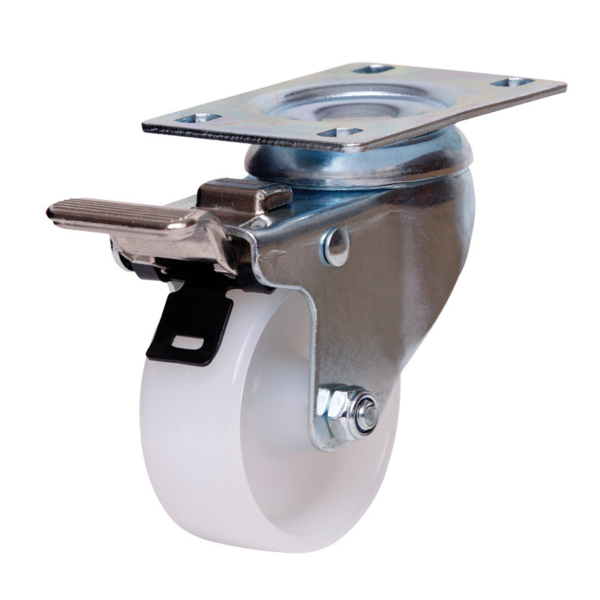

75mm Nylon Wheel 100kg Capacity Castor (S3304B)

The S3304B from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our light industrial series range and can hold loads up to 125kg. The S3304B is assembled with plain bearings on the castors axle. The swivel frame of this castor allows for full 360° swivel rotation. The overall nylon wheel diameter is 75mm, the wheel width is 30mm and can be ordered separately (NY3321). To order this castor without a brake, search for S3304.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Available with a large range of wheels each designed to suit varied floor surfaces, application and load requirements – Richmond’s Light Industrial Series castors are ideal for use on mobile equipment, hospital equipment, nurseries, shops and general industry. The light industrial series is the castor of choice or green grocers and market stalls for produce bins as it provides an economical hard wearing reliable castor. Combining a zinc plated corrosion resistant frame and a robust twin race swivel ensures a long and productive life.

Product Code	S3304B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Bearing Type	Plain Bore
Castor Height (mm)	108
Swivel Radius (mm)	108
Maximum Load Capacity (kg)	100
