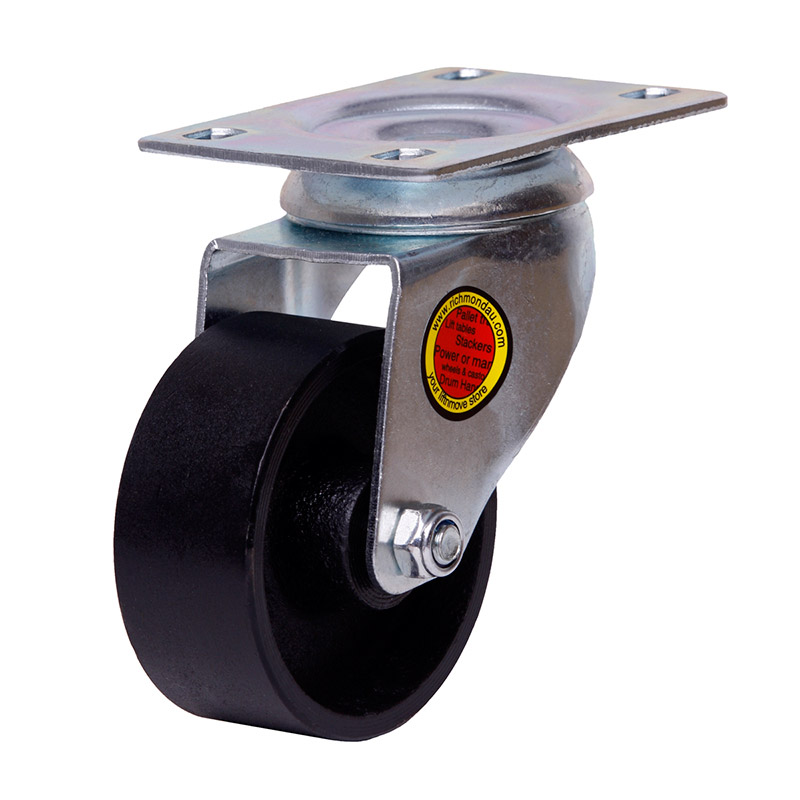

75mm Ci Wheel 100kg Capacity Castor (S3306)

125kg load capacity
Zinc plated corrosion resistant frame
Robust twin race swivel
Cast iron wheel
Suitable for extreme temperature ranges from -20°C to 280°C
Cast iron wheel diameter is 75mm, wheel width is 32mm, can be ordered separately (part number: Ci3440)

This castors frame is a swivel frame which allows the castor to swivel or rotate 360° so the load may be steered.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Available with a large range of wheels each designed to suit varied floor surfaces, application and load requirements – Richmond’s Light Industrial Series castors are ideal for use on mobile equipment, hospital equipment, nurseries, shops and general industry. The light industrial series is the castor of choice or green grocers and market stalls for produce bins as it provides an economical hard wearing reliable castor. Combining a zinc plated corrosion resistant frame and a robust twin race swivel ensures a long and productive life. Suitable for extreme temperatures between -20°C to 280°C.

Product Code	S3306
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Cast Iron
Wheel Bearing Type	Plain Bore
Castor Height (mm)	108
Swivel Radius (mm)	71
Maximum Load Capacity (kg)	100
Temperature range (°C)	-20° to 280°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
