50mm Twin Wheel Utility Bolt Castor (S2722B)

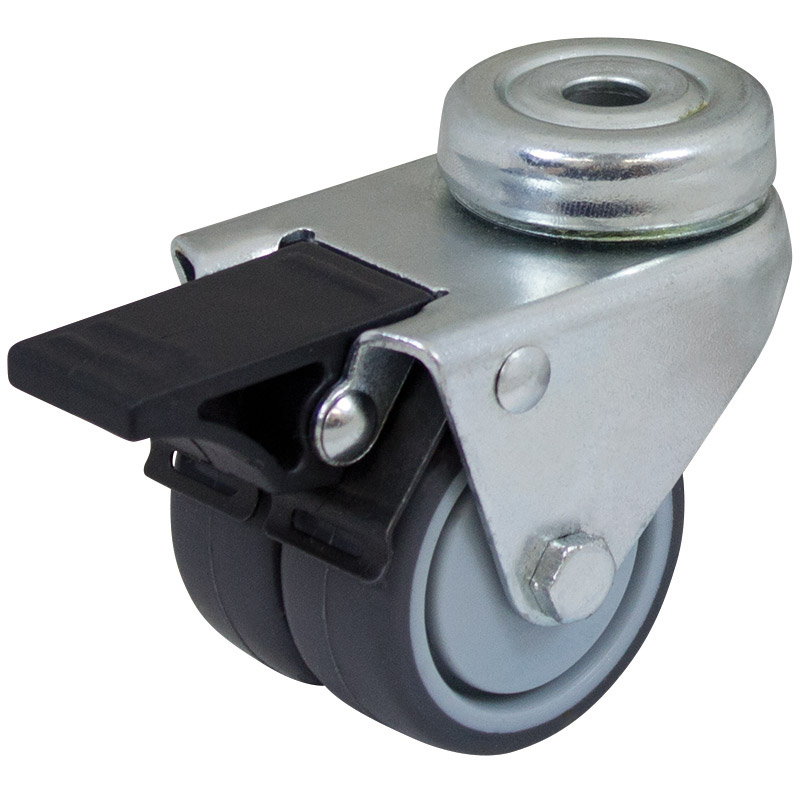

The S2722B by Richmond is a swivel frame castor and is fitted with 2 institutional rubber wheels. This swivel castor is part of our utility series twin wheel range and can hold loads up to 50kg. The S2722B is assembled with ball bearings on the castors axle. The swivel frame of this castor allows full swivel rotation to enable steering. The overall institutional rubber wheels diameter is 50mm, the wheels width is 2 x 20mm. This model can also be ordered without a brake (part number S2722).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases maneuverability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S2722B
Wheel Diameter (mm)	50
Frame Type	Swivel with Brake
Wheel Width (mm)	2 x 25
Wheel Type	Institutional Rubber
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	71
Swivel Radius (mm)	83
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	50
Recommended Load Capacity (kg)	40
