250mm SG Iron Wheel 1500Kg Capacity Castor (S1032D)

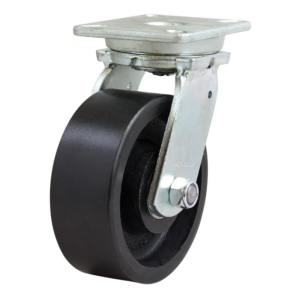

The S1032D from Richmond is a swivel frame castor and features a semi pneumatic wheel. This swivel castor is in our forged head series range and can safely take loads up to 1500kg. The S1032D wheel is fitted with ball bearings. The swivel frame of this castor allows for full 360° swivel rotation. The diameter of the semi pneumatic wheel is 250mm, the wheel width is 75mm and can be ordered separately (SG1027). To order this castor without the direction lock, search for S1032. This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

Product Code	S1032D
Wheel Diameter (mm)	250
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	75
Wheel Type	SG Iron
Wheel Code	SG1027
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	317
Swivel Radius (mm)	194
Maximum Load Capacity (kg)	1500
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
