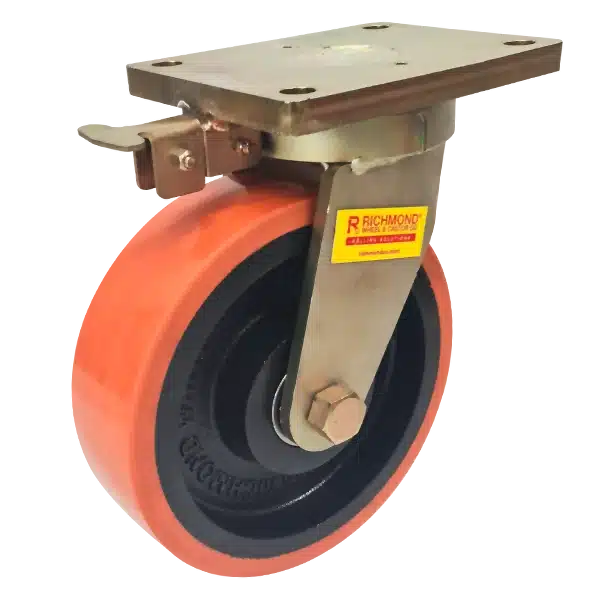

250mm Poly Wheel 3000 Series Castor (S10904D)

The S10904D manufactured by Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is in our 3000 series range and can hold loads up to 2500kg. The S10904D wheel is fitted with ball bearings. The swivel frame allows for full 360° swivel rotation. The polyurethane wheel diameter is 250mm, the wheel width is 75mm and can be ordered separately (PU1029). For the same castor without a direction lock, see S10904.

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

This extra heavy duty range has been precisely engineered and custom built to excel under the hardest conditions. Richmond’s 3000 Series picks up applications that our 1000 Series can not. An increased towing capacity and towing speed, increases the possibility for rolling solutions for the most abstract of trolleys and platforms.

Product Code	S10904D
Wheel Diameter (mm)	250
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	75
Wheel Type	Polyurethane
Wheel Code	PU1029
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	310
Swivel Radius (mm)	190
Maximum Load Capacity (kg)	2500
Towable	Yes

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
