250mm Cushion Rubber 300kg Capacity Castor
Model Number: R1026
Frame Type: Rigid
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | R1026 |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Cushion Rubber |
| Wheel Code | CR1060 |

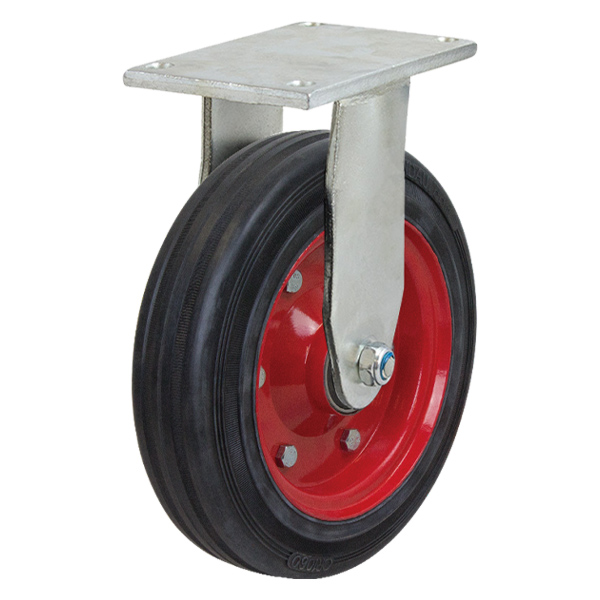

The R1026 from Richmond is a rigid frame castor and features a cushion rubber wheel. This rigid castor is in our 500 series range and has a maximum capacity of 300kg. The R1026 is assembled with ball bearings on the castors axle. This castors rigid frame allows for steering only when used with swivel castors. The outside diameter of the cushion rubber wheel is 250mm, the wheel width is 50mm and can be ordered separately (CR1060).
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond's 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer's due to the reliability and performance of this robust castor.
View Specifications
| Product Code | R1026 |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Cushion Rubber |
| Wheel Code | CR1060 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 302 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 220 |
| Towable | Yes |
Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
