20mm to 5/8"

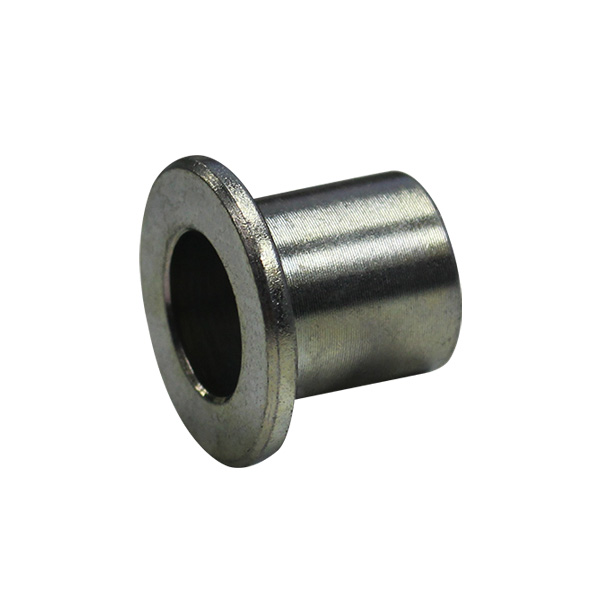

20mm Top Hat (Bore Reducer) to suit 5/8 Inch Fittings
Model Number: RED20X62
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Part Number | RED20X62 |
|---|---|
| Bearing Bore (mm) | 20 |
| Top Hat Bore (mm) | 5/8 inch (15.87mm) |
| Top Hat Length (mm) | 12.5 |
| Overall Length (mm) | 15.5 |
| Flange Width (mm) | 3 |
Top hats can be used to fit wheels to a variety of axle sizes, or to reduce castor bolt-hole sizes to suit a variety of bolts.
This model is suitable for reducing a 20mm bore to a 5/8 inch (15.87mm) bore.
View Specifications
| Part Number | RED20X62 |
|---|---|
| Bearing Bore (mm) | 20 |
| Top Hat Bore (mm) | 5/8 inch (15.87mm) |
| Top Hat Length (mm) | 12.5 |
| Overall Length (mm) | 15.5 |
| Flange Width (mm) | 3 |
| Flange Diameter (mm) | 30 |
Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
