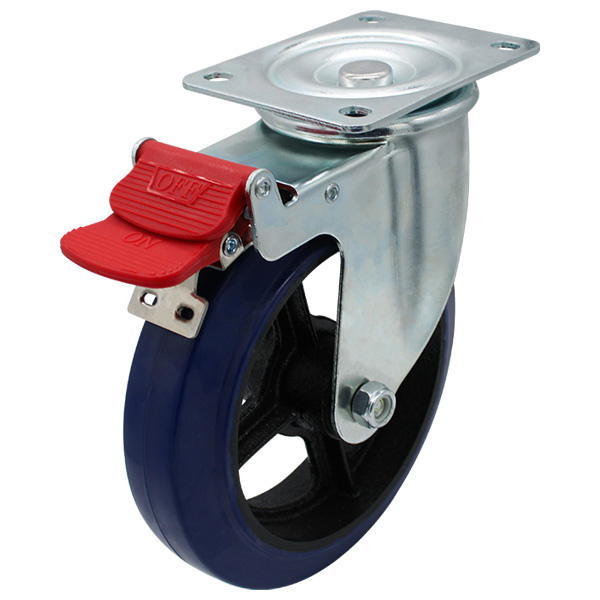

200mm Rubber Wheel 250kg Capacity Castor (S8040B)

The S8040B manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 250kg. The S8040B uses roller bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the rubber wheel is 200mm, the wheel width is 50mm and can be ordered separately (RT8842). To order this castor without a brake, search for S8040.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S8040B
Wheel Diameter (mm)	200
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT8842
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	237
Swivel Radius (mm)	170
Maximum Load Capacity (kg)	250
Recommended Load Capacity (kg)	225

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
