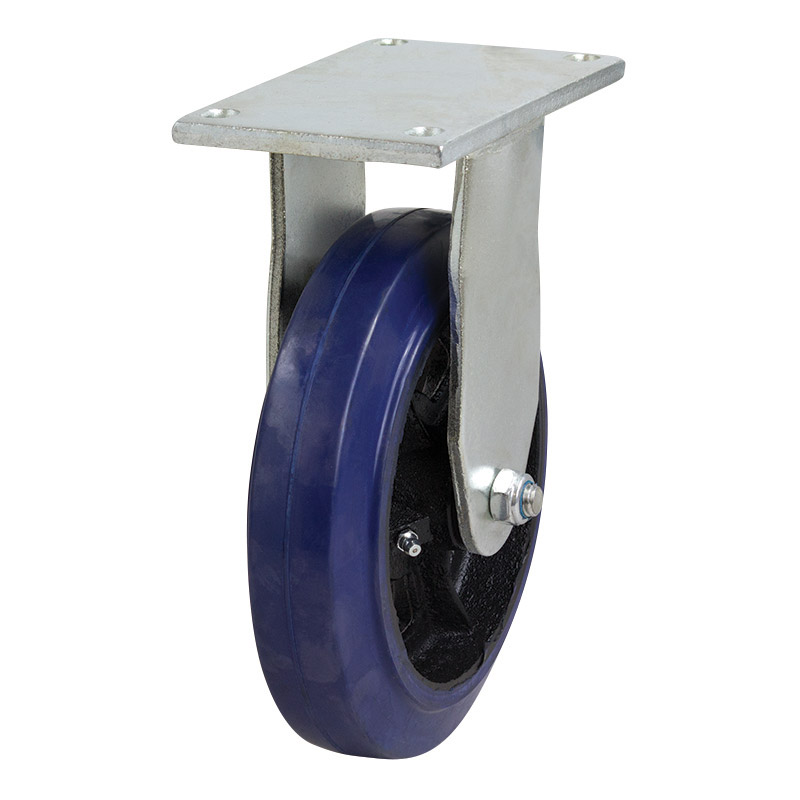

200mm Rubber Wheel 250kg Capacity Castor (R8231)

The R8231 by Richmond Rolling Solutions is a rigid frame castor and features a rubber wheel. This rigid castor is one of our 500 series range and has a maximum capacity of 250kg. The R8231 is assembled with roller bearings on the castors axle. The rigid frame of this castor allows for steering only when used with swivel castors. The overall rubber wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (RT8842).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R8231
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT8842
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	248
Maximum Load Capacity (kg)	250
Recommended Load Capacity (kg)	225
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
