200mm Rubber Wheel 200kg Capacity Castor (R8047)

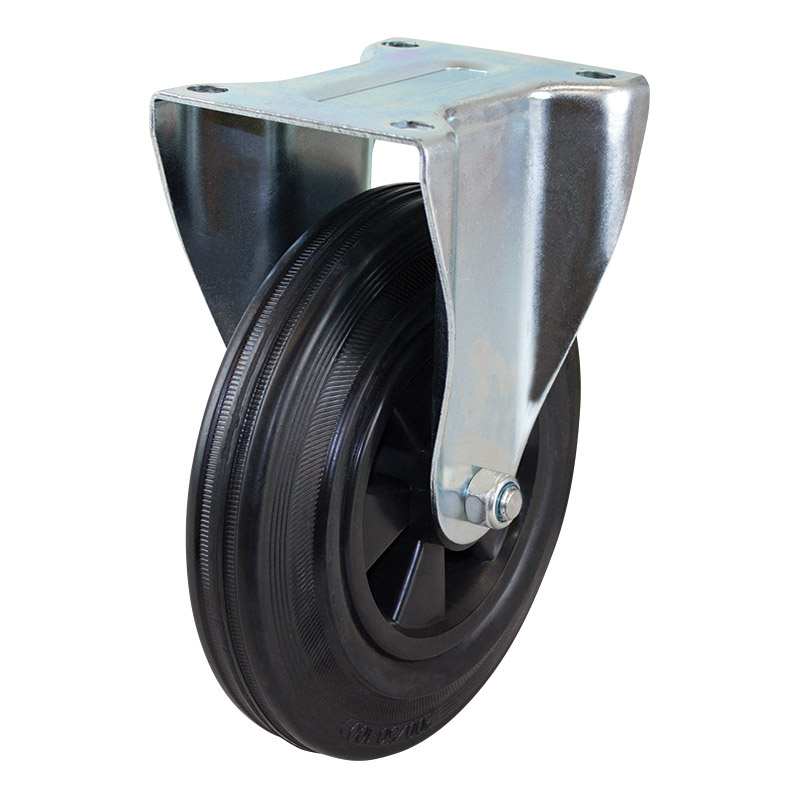

The R8047 manufactured by Richmond is a rigid frame castor and has a rubber tyred nylon wheel. This rigid castor is in our 300 series plate range and can safely take loads up to 200kg. The R8047 is assembled with roller bearings on the castors axle and is mounted with the baseplate. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rubber tyred nylon wheel diameter is 200mm, the wheel width is 45mm and you can order separately (Part Number: RN8875).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R8047
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	45
Wheel Type	Rubber
Wheel Code	RN8875
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	237
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
