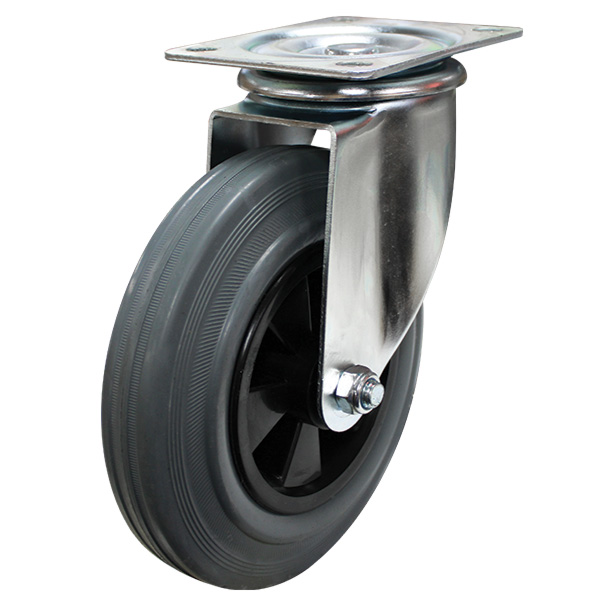

200mm Rubber Tyre on Nylon Centre Wheel 200kg Capacity Castor (S8050)

The S8050 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a rubber tyred nylon wheel. This swivel castor is one of our 300 series plate range and can hold loads up to 200kg. The S8050 is assembled with ball bearings on the castors axle and is mounted with the baseplate. The swivel frame allows the load to be steered. The diameter of the rubber tyred nylon wheel is 200mm, the wheel width is 35mm and can be ordered separately (RN8876). For the same castor with a brake, see S8050B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S8050
Wheel Diameter (mm)	200
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Rubber Nylon
Wheel Code	RN8875
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	237
Swivel Radius (mm)	156
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	175
