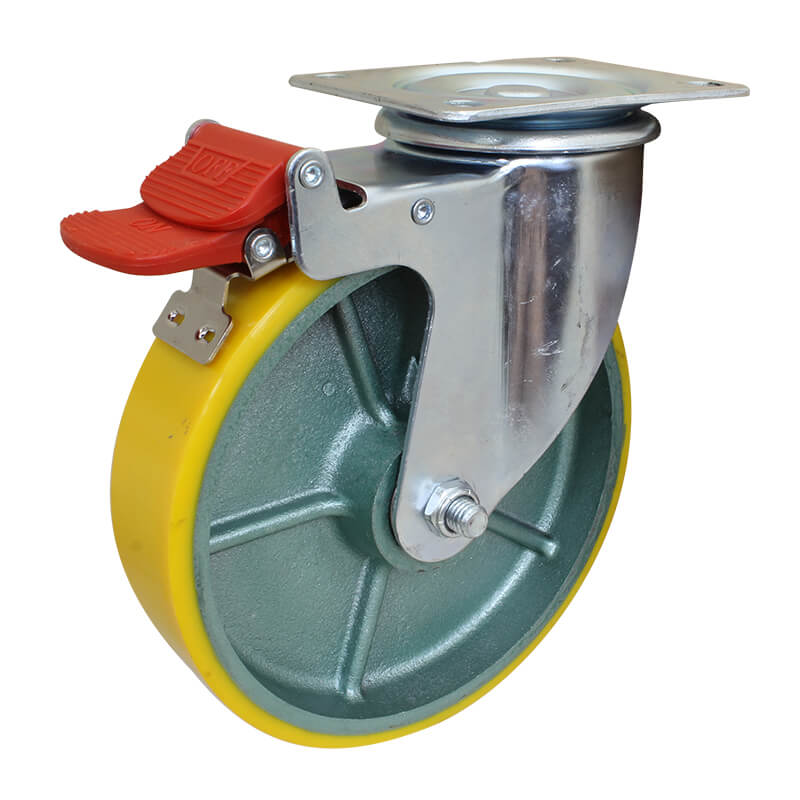

200mm Polyurethane Wheel 300kg Capacity Castor (S8048B)

The S8048B from Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 300kg. The S8048B is assembled with ball bearings on the castors axle and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU849). This model can also be ordered without a brake (part number S8048).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S8048B
Wheel Diameter (mm)	200
Frame Type	Swivel with Brake
Wheel Width (mm)	50
Wheel Type	Polyurethane
Wheel Code	PU849
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	237
Swivel Radius (mm)	170
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225
